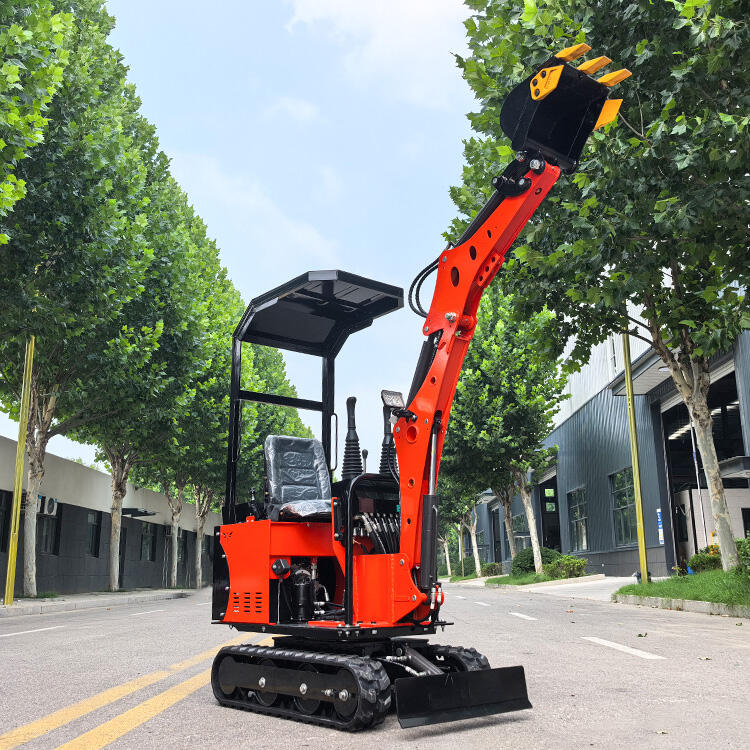

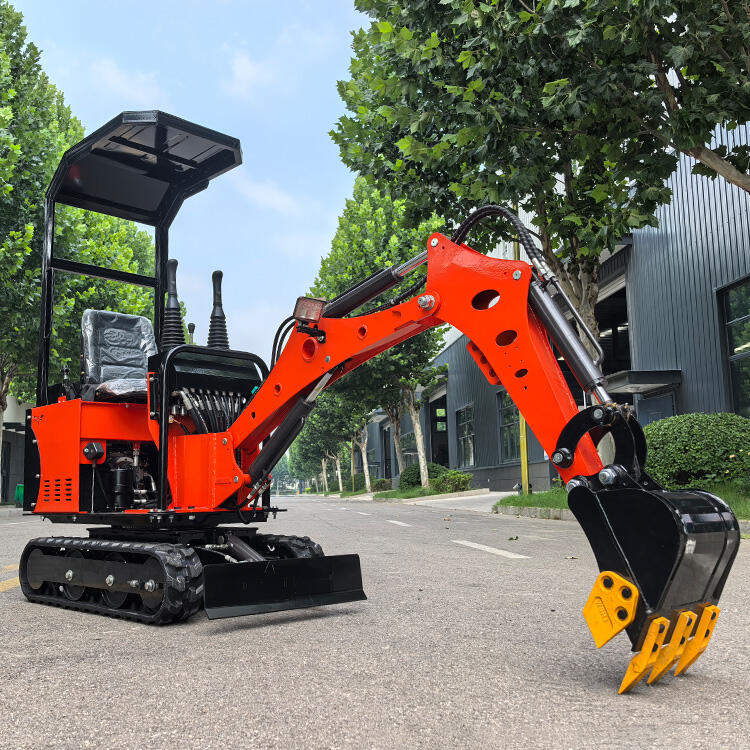

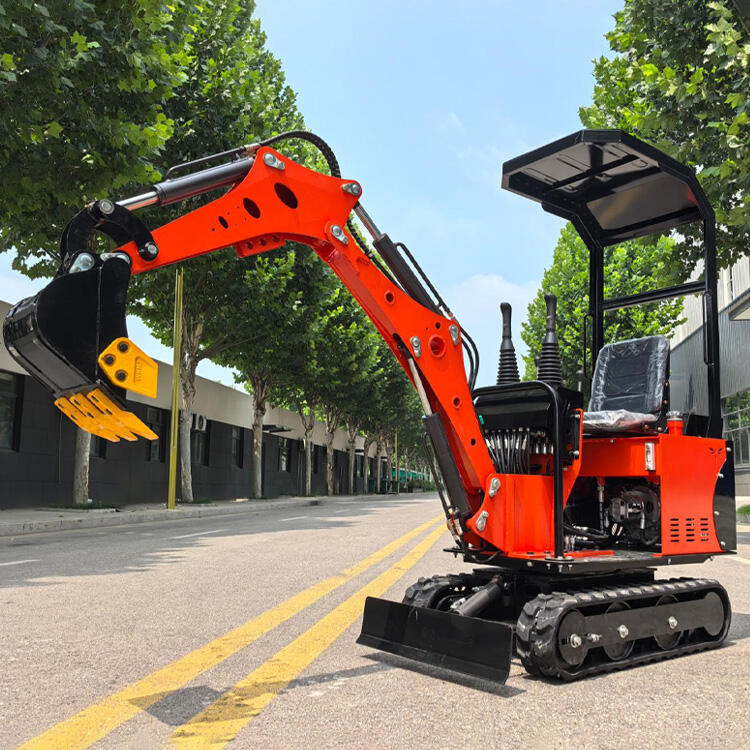

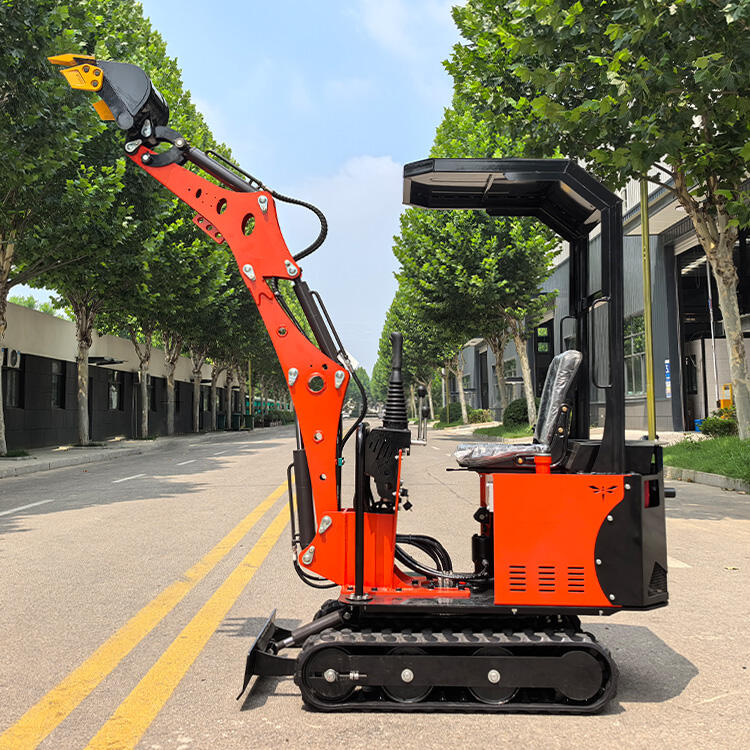

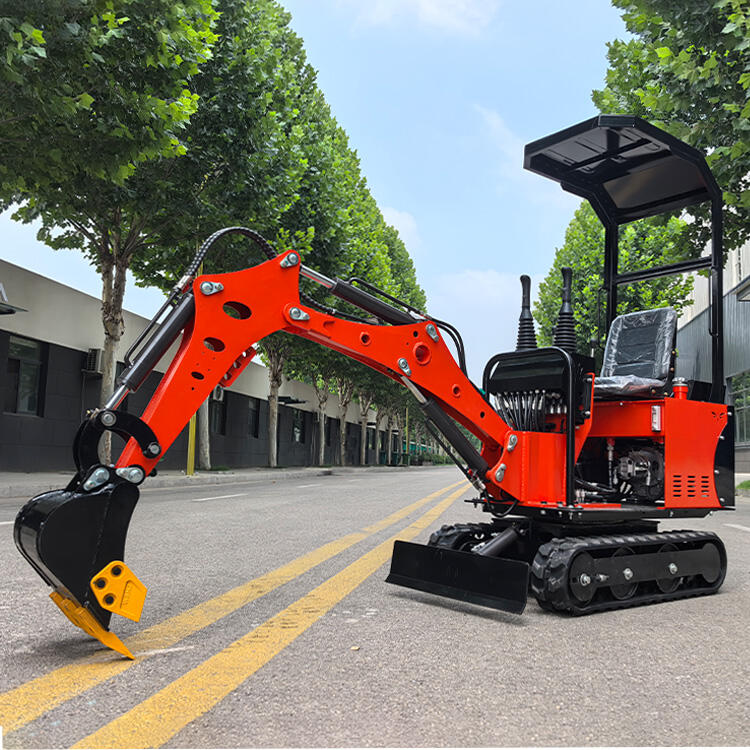

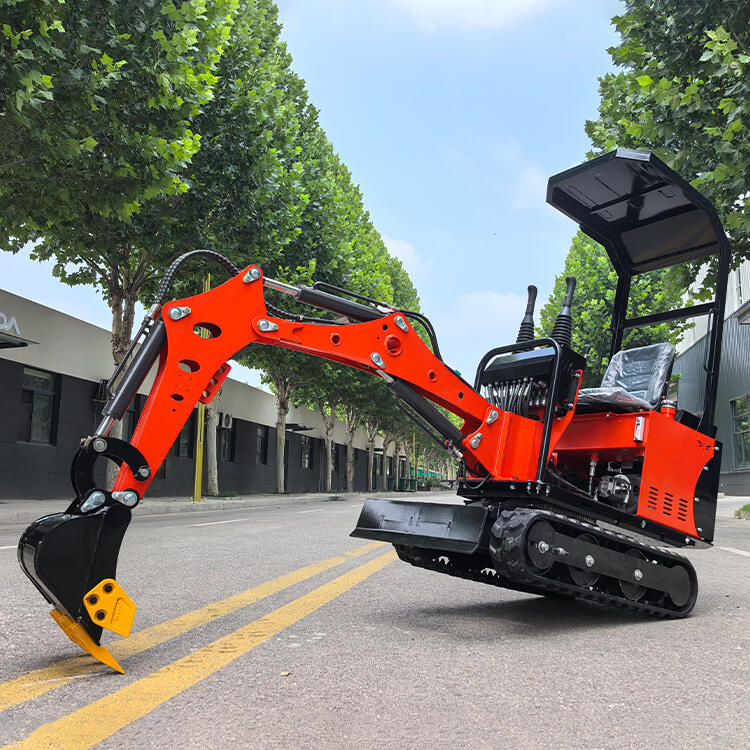

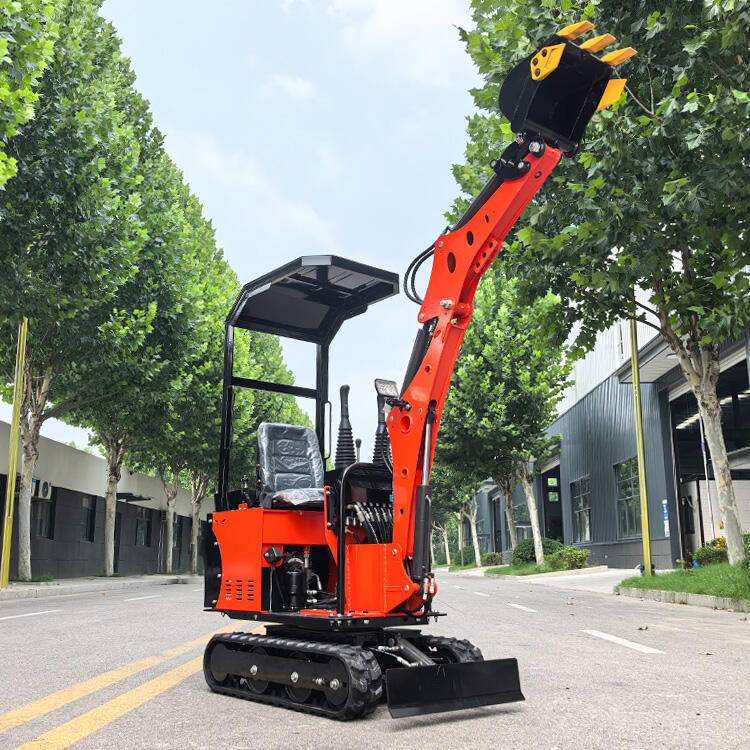

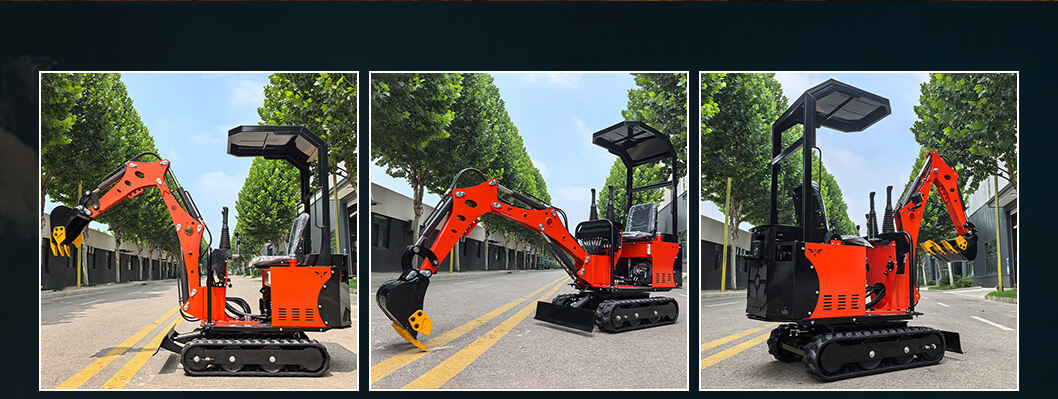

Free Shipping 0.8Ton Mini Excavator Bagger Small Crawler Excavator 1 Tons 2 Digger Home Excavators

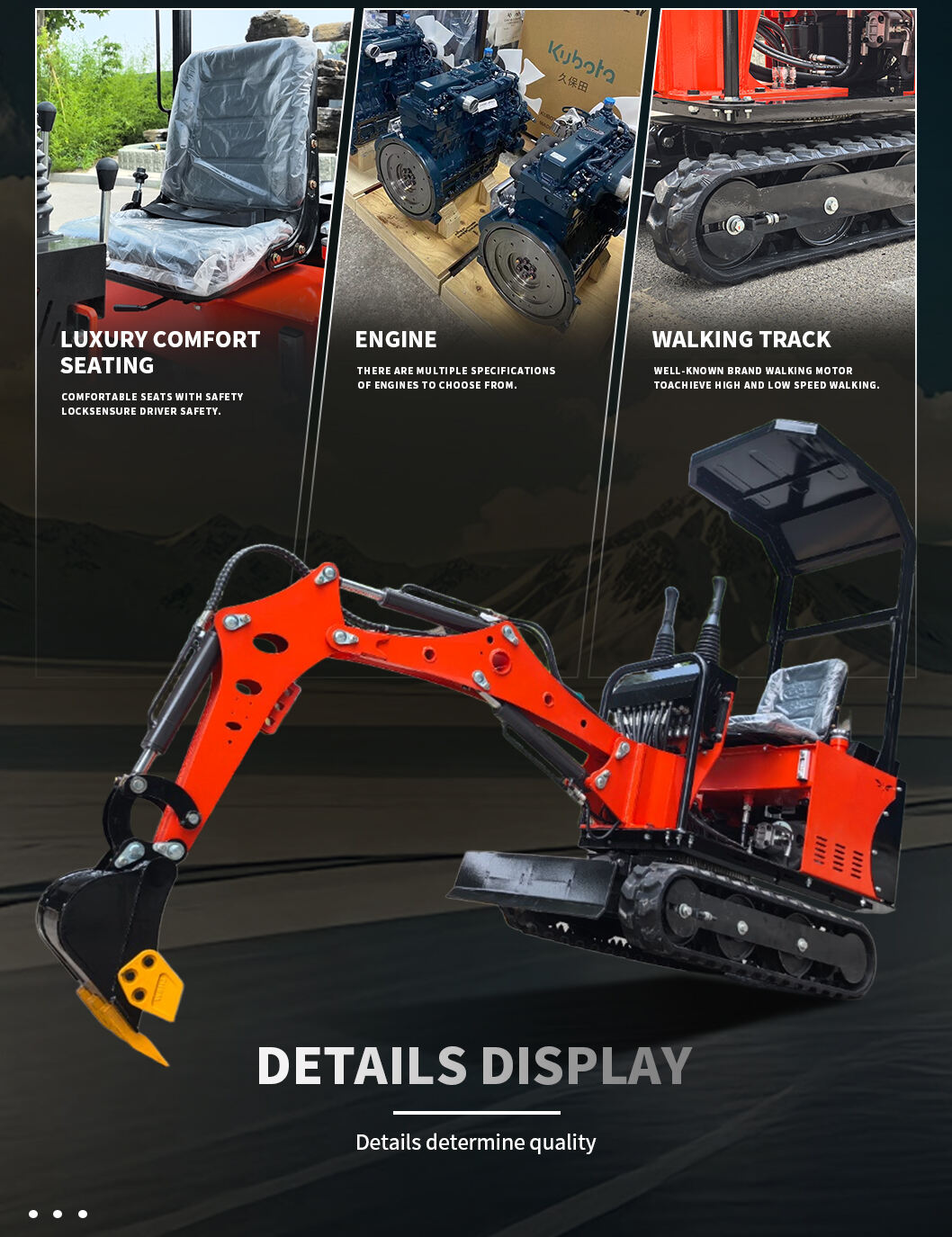

PRODUCTOVERVIEW: This machine is made of manganese steel,equipped with a standard 40cm bucket,360-degree rotation, wear-resistant engineering rubber tracks,mechanical operation,hydraulic oil display port,plastic spraying process,bidirectional guide wheels,locking tracks that are not easy to falloff,grease nipples for lubricating pins,thickened cylinders,and thickened dozer blade.Compact and flexible for narrow spaces;simple operation and easy transport;uses international renowned brand engine for smooth and reliable performance;comprehensive after-sales service.
● Premium engine,excellent configuration,export quality;
● Widened and thickened dozer blade for durability;
● Dual-hand mechanical operating system,simple and easy to operate;
● Thickened cylinders with imported seals for longer use;
● Pins with grease nipples for lubrication;
● I-beam industrial chassis,engineering rubber tracks,all-terrain versatility.
| CATEGORY | ITEM | SPECIFICATION/DESCRIPTION |
| BASIC PARAMETERS | Product Model | OMI-08 |
| Operating Weight | 800kg | |
| Overall Dimensions (L×W×H) | 2600*720*1500mm | |
| Cab Type | Standard roof | |
| Track Type(Rubber/Steel) | Standard rubber tracks /optional steel tracks | |

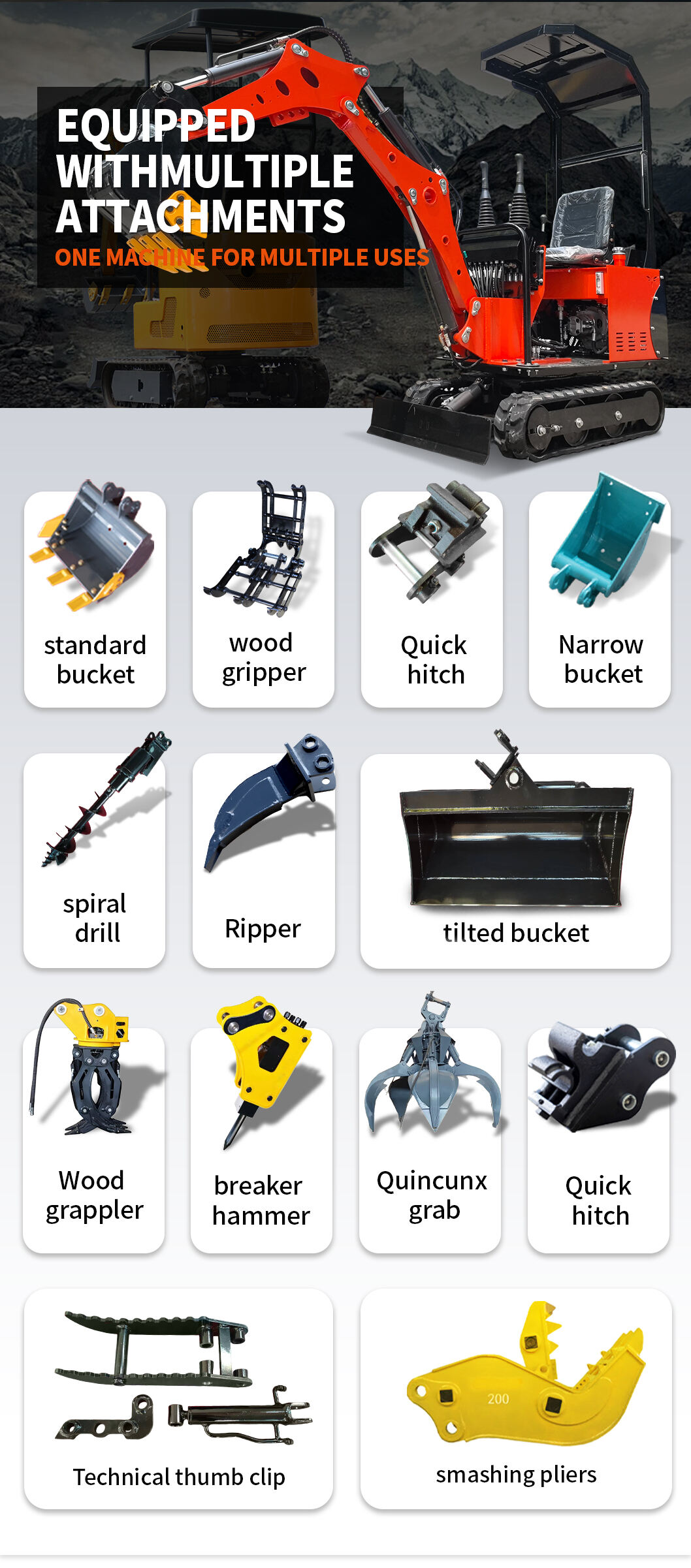

| Optional Attachments | Breaker/Rake/Quick hitch /Thumb clamp/Ripper/Grapple /Fork/Auger/Clamshell bucket /Hopper | |
| Compliance with certification | ISO/CE/GOST/ANSI/SA | |
| ENGINE | Engine Brand&Model | Koop 192/Youpu 192 /Changchai/Electric |
| Rated Power(HP/kW) | 12 HP/12HP | |
| Optional Engine Models | Koop/Youpu/Briggs &Stratton /Rato/Koop Euro 5 /Youpu Euro 5/Changchai | |
| Emission Standard | EPA/Euro 5 | |
| HYDRAULIC SYSTEM | Hydraulic System Pressure | 16 MPa |
| Main Pump Type | Single pump | |
| Control Mode(Pilot/Mechanical) | Mechanical | |
| Breaker Line (Yes/No) | Yes | |
| WORKING PARAMETERS | Boom Swing | Optional |
| Max.Digging Depth | 1400 mm | |
| Max.Digging Radius | 2700 mm | |
| Max.Digging Force | 10 KN | |
| Min.Operating Radius | 650 mm | |
| Bucket Capacity | 0.025m³ | |
| Bucket Width | 400 mm | |
| Max.Blade Lift Height | 160 mm | |
| Max.Blade Lowering Depth | 210 mm | |
| Travel Speed | 2.2-4.3km/h | |
| Gradeability | 35° | |
| Track Width | 150 mm | |
| Track Gauge | 420 mm |
