FREE SHIPPING Mini Excavator 1 Ton Farm Excavator Mini Crawler Digger EPA Engine Kubota 2 Ton Small Mini Excavator for Sale

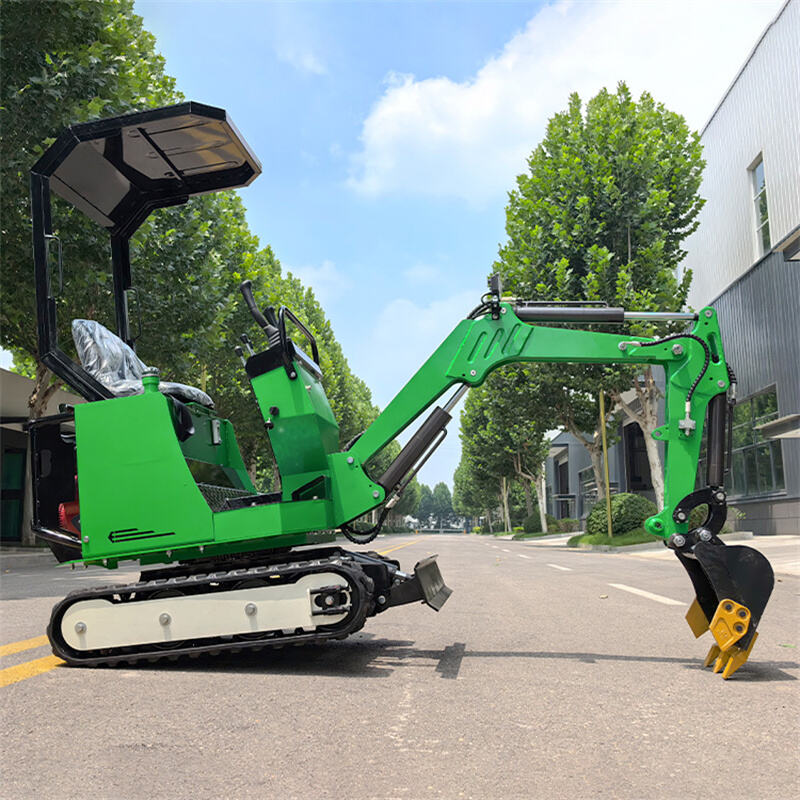

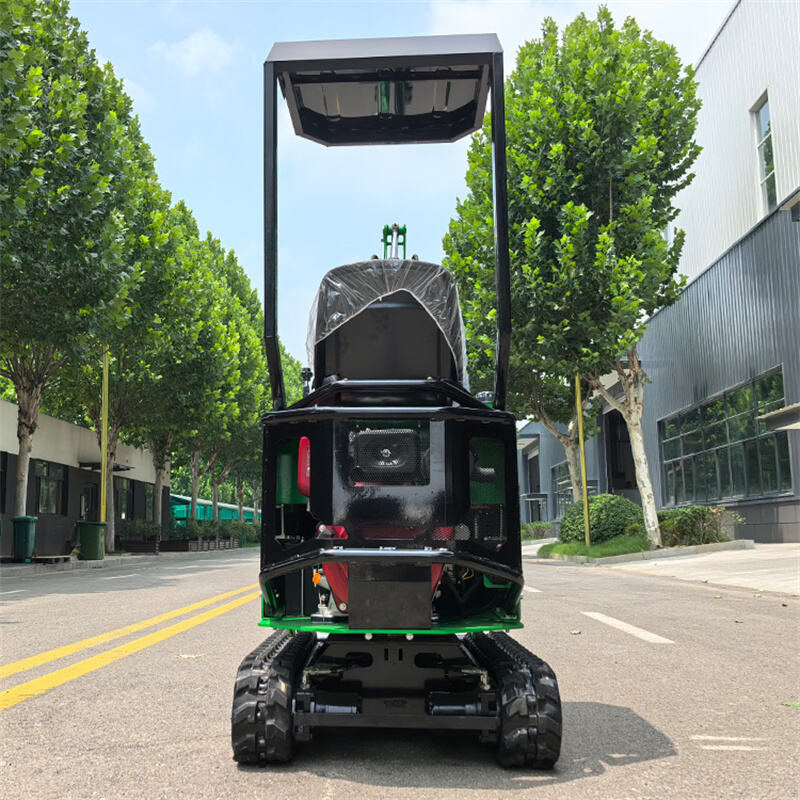

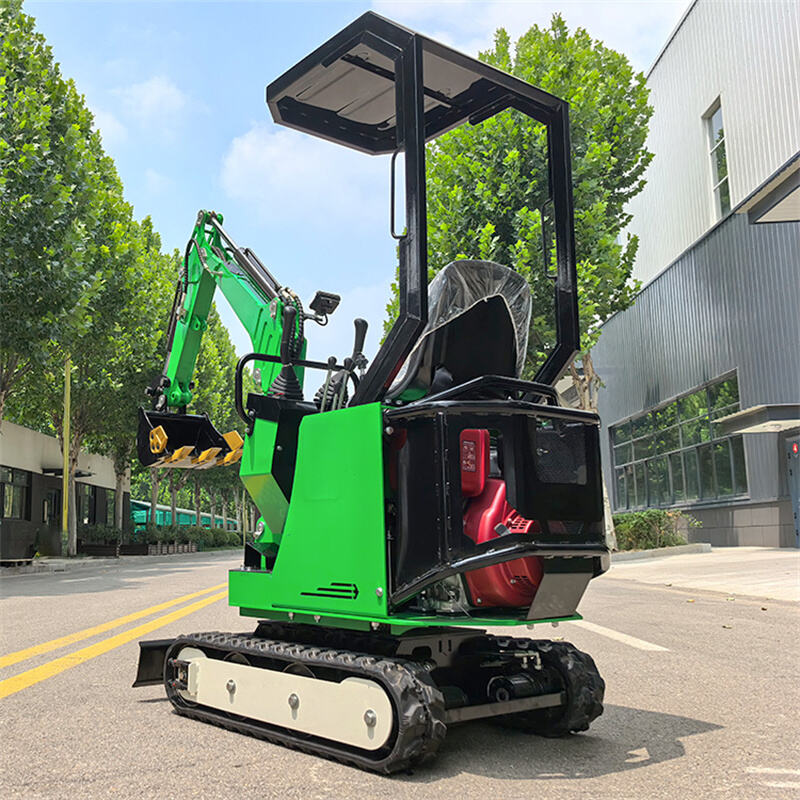

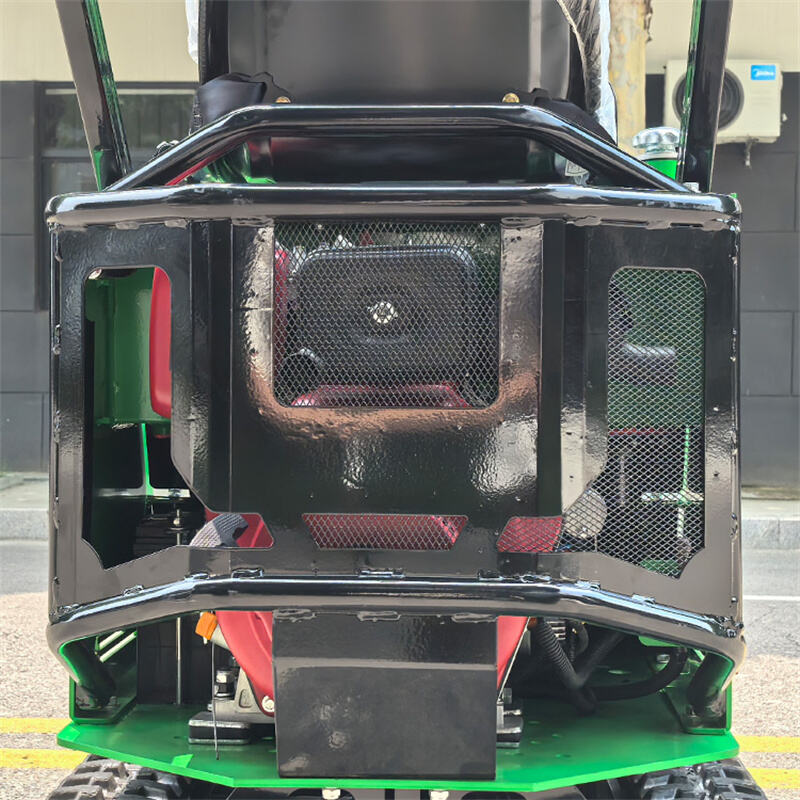

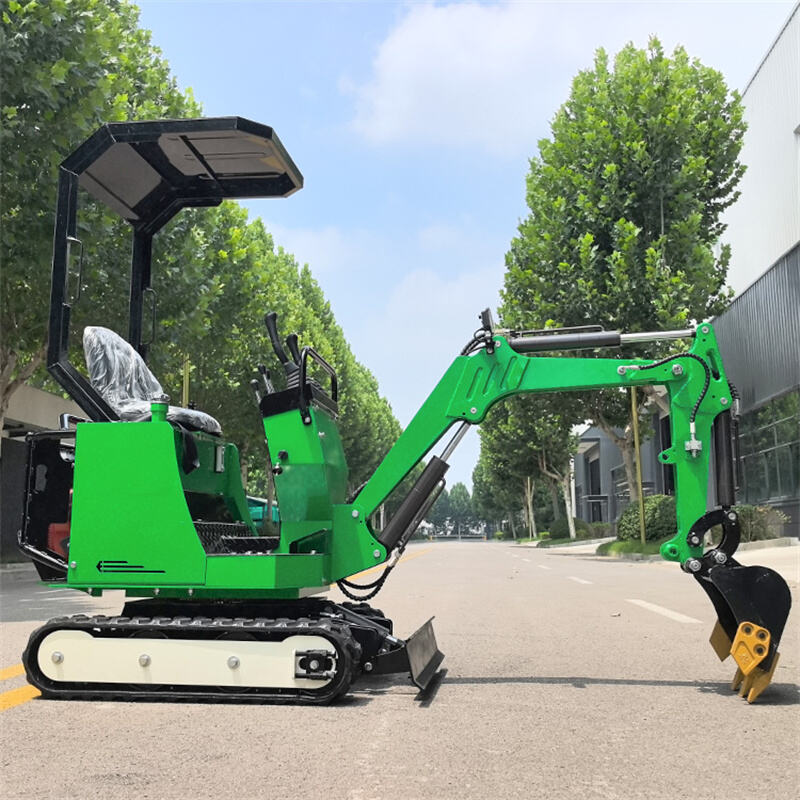

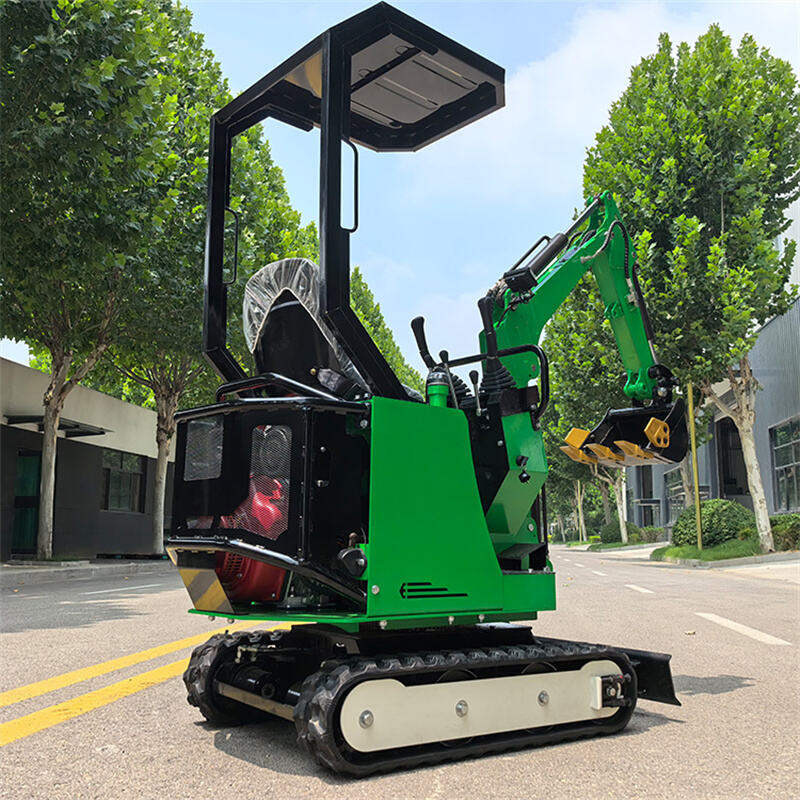

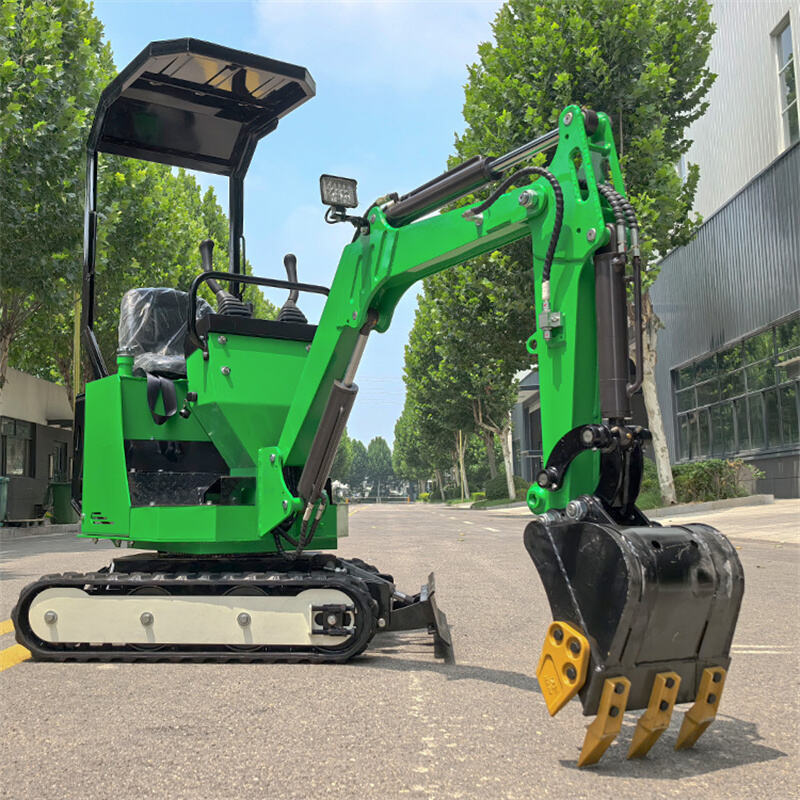

PRODUCTOVERVIEW:This machine is made of manganese steel,equipped with a standard 40cm bucket,360-degree rotation, wear-resistant engineering rubber tracks,mechanical operation,hydraulic oil display port,integrated stamping design,plastic
spraying process,bidirectional guide wheels,locking tracks that are not easy to fall off,grease nipples for lubricating pins,

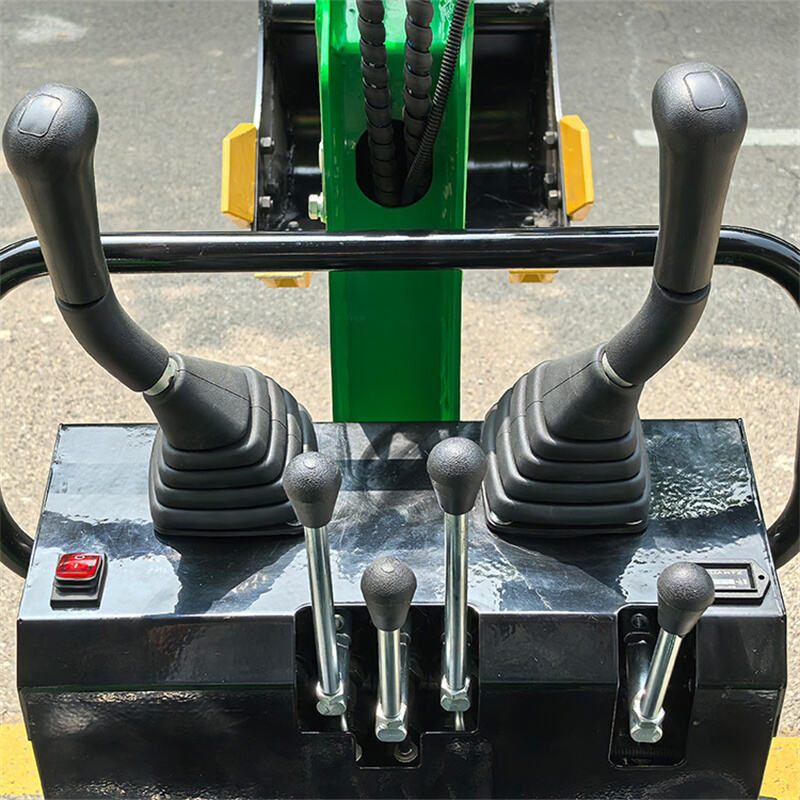

thickened cylinders,and thickened dozer blade.Uses international renowned brand engine for smooth and reliable performance; 360-degree rotation for convenient outdoor work;dual-hand mechanical operating system,easy to learn;eco-friendly engine
meeting emission standards;fast-response after-sales.
● Excellent cost-performance ratio with high long-term ROI;
● Compact and flexible,perfectly adapts to narrow spaces and complex environments;
● Liberates labor,achieves mechanization at lowest cost.
| CATEGORY | ITEM | SPECIFICATION/DESCRIPTION |
| BASIC PARAMETERS | Product Model | OMI-10 |
| Operating Weight | 1000kg | |
| Overall Dimensions (L×W×H) | 2900*940*2020mm | |
| Cab Type | Standard roof/optional cab | |
| Track Type(Rubber/Steel) | Standard rubber tracks /optional steel tracks | |

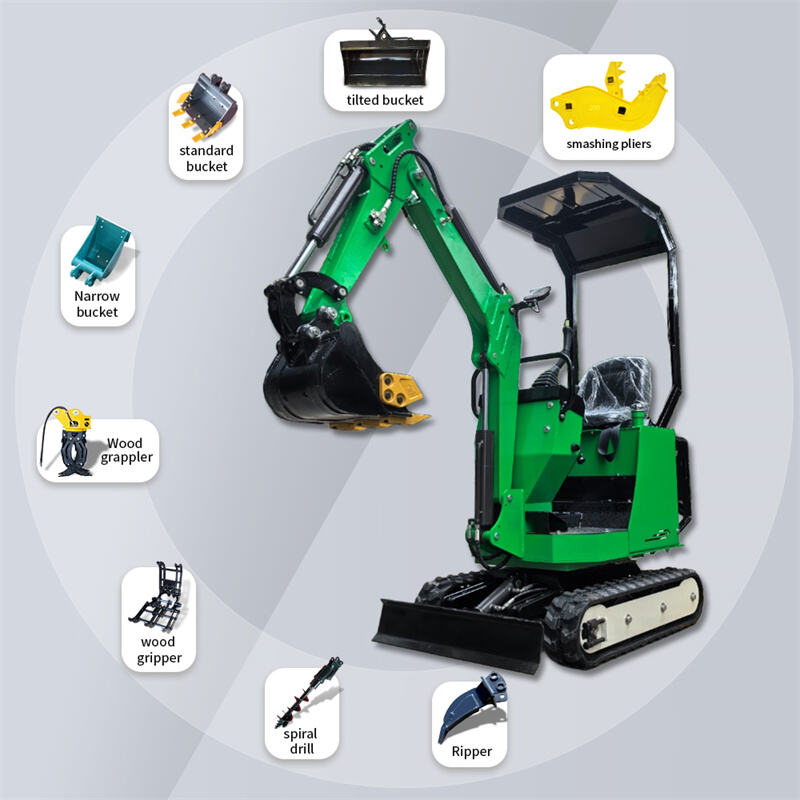

| Optional Attachments | Breaker/Rake/Quick hitch /Thumb clamp/Ripper/Grapple /Fork/Auger/Clamshell bucket /Hopper | |
| Compliance with certification | ISO/CE/GOST/ANSI/SA | |
| ENGINE | Engine Brand&Model | Koop 192/Youpu 192 /Changchai/Electric |
| Rated Power(HP/kW) | 12 HP/12HP | |
| Optional Engine Models | Koop/Youpu/Briggs &Stratton /Rato/Koop Euro 5 /Youpu Euro 5/Changchai | |
| Emission Standard | EPA/Euro 5 | |
| HYDRAULIC SYSTEM | Hydraulic System Pressure | 16 MPa |
| Main Pump Type | Single pump | |
| Control Mode(Pilot/Mechanical) | Mechanical | |
| Breaker Line (Yes/No) | Yes | |
| WORKING PARAMETERS | Boom Swing | Optional |

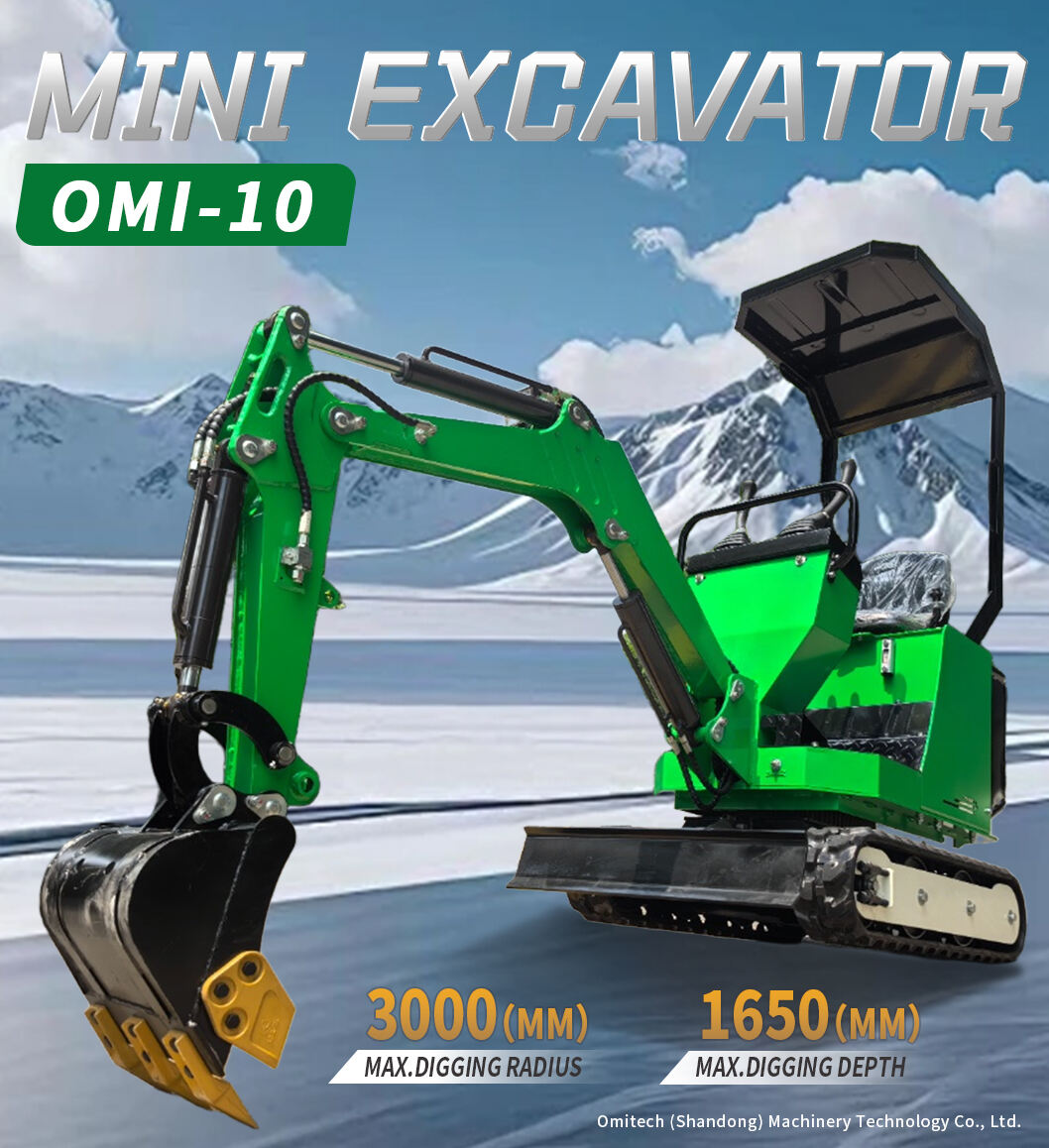

| Max.Digging Depth | 1650 mm | |
| Max.Digging Radius | 3000 mm | |
| Max.Digging Force | 10 KN | |
| Min.Operating Radius | 750mm | |
| Bucket Capacity | 0.035m³ | |
| Bucket Width | 400 mm | |
| Max.Blade Lift Height | 160 mm | |
| Max.Blade Lowering Depth | 210 mm | |
| Travel Speed | 2.2-4.3km/h | |
| Gradeability | 35° | |
| Track Width | 180 mm | |
| Track Gauge | 600 mm |
