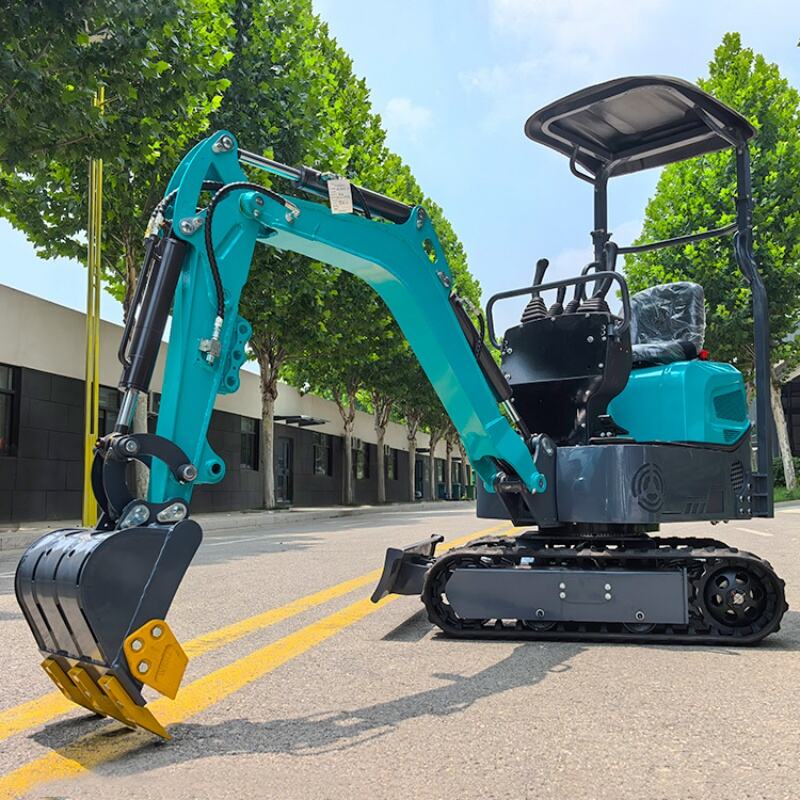

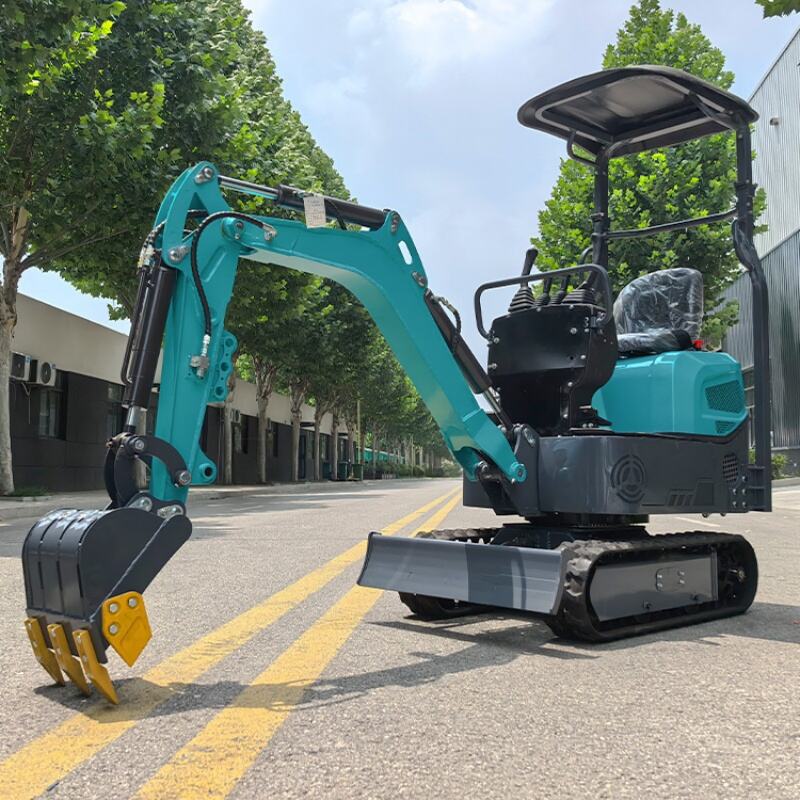

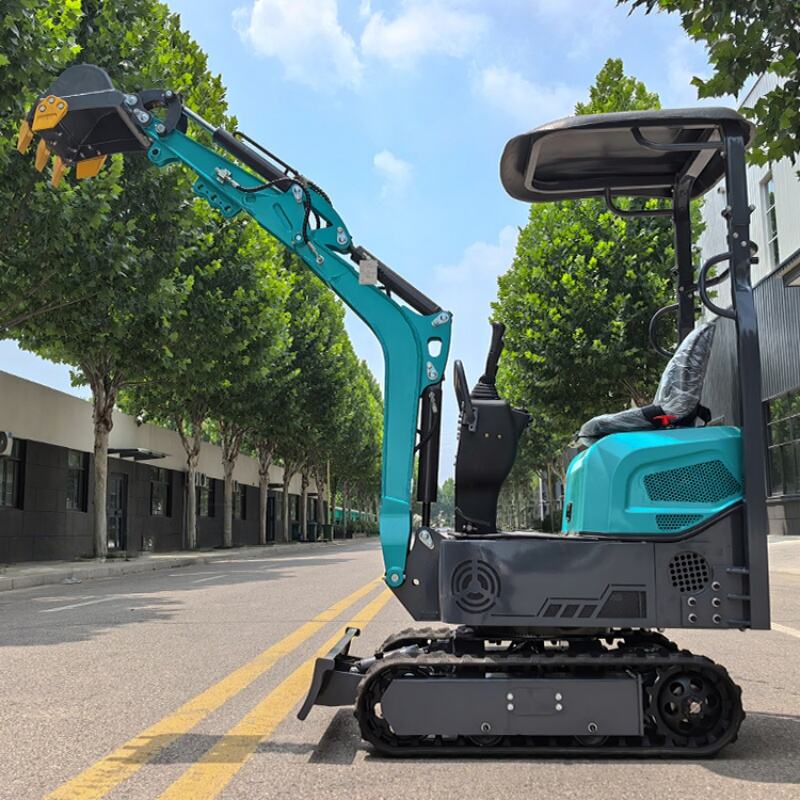

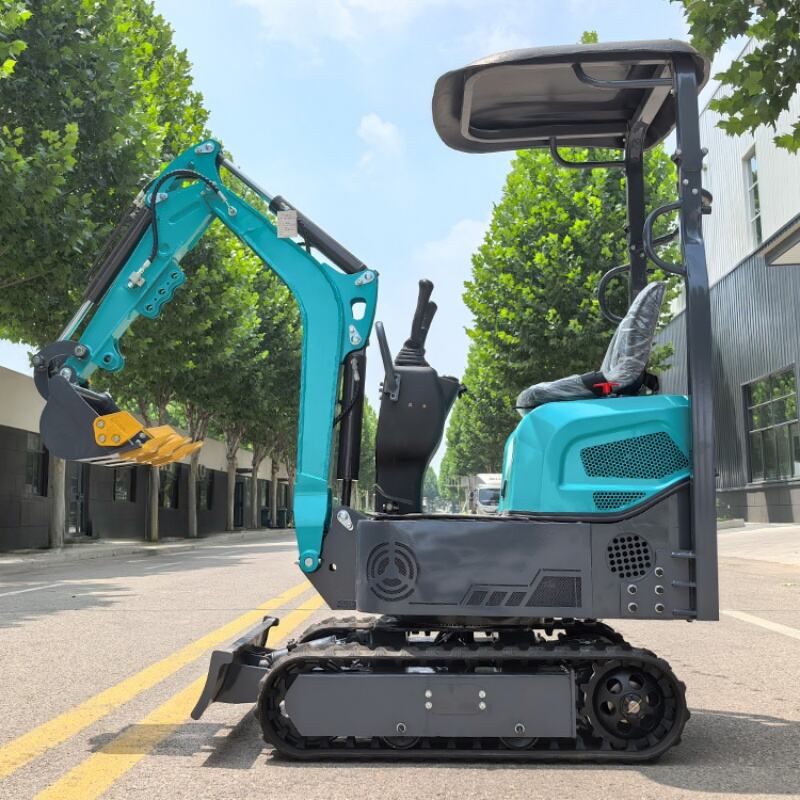

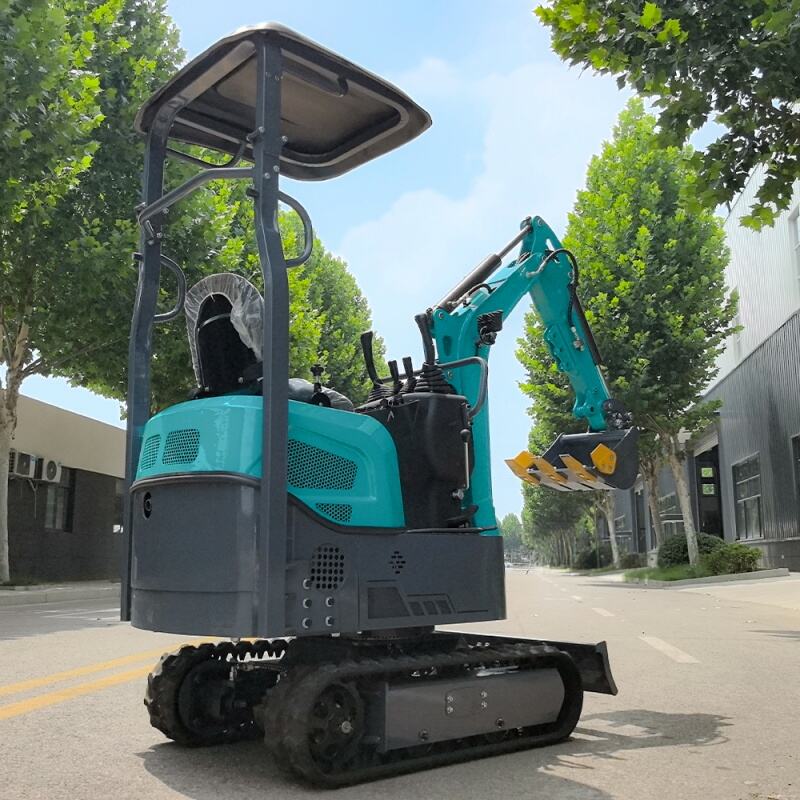

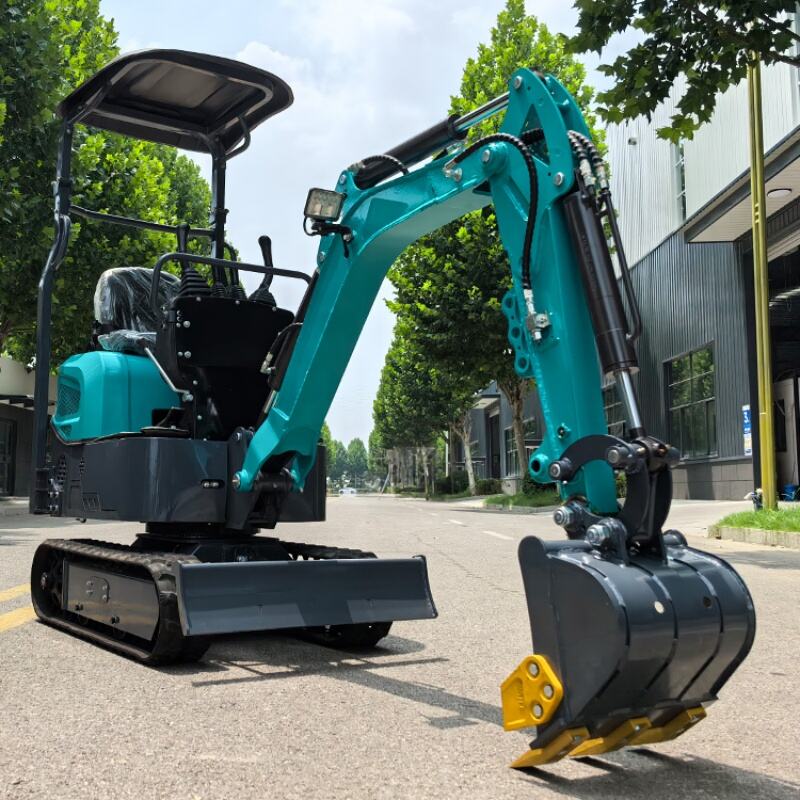

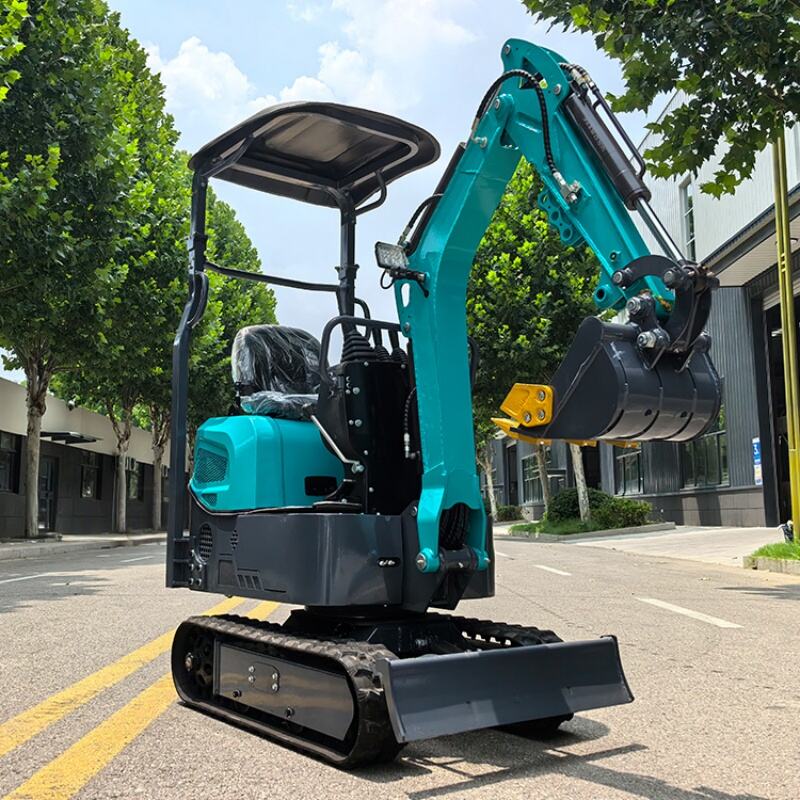

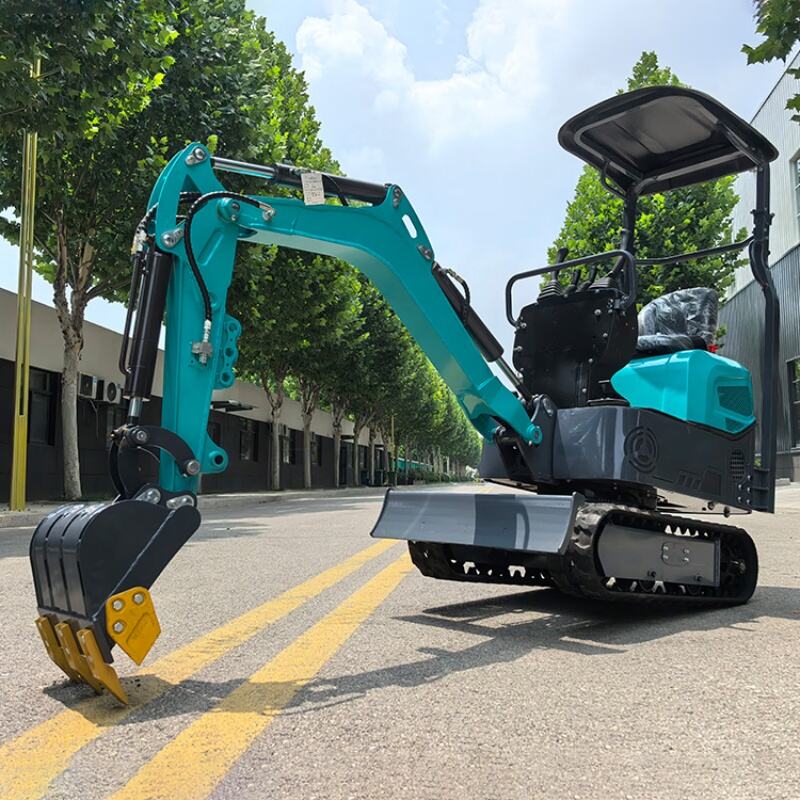

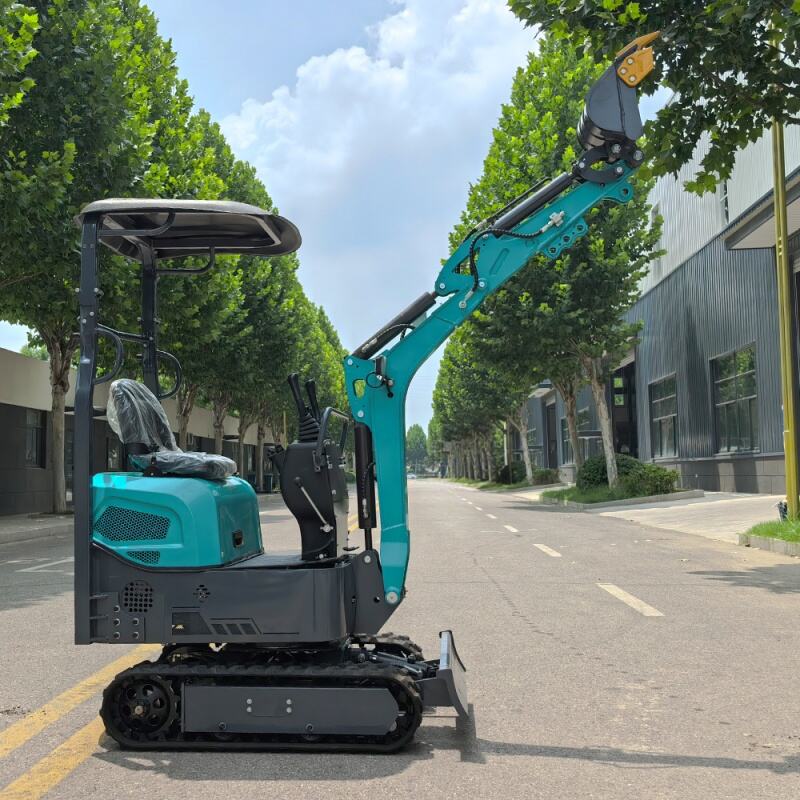

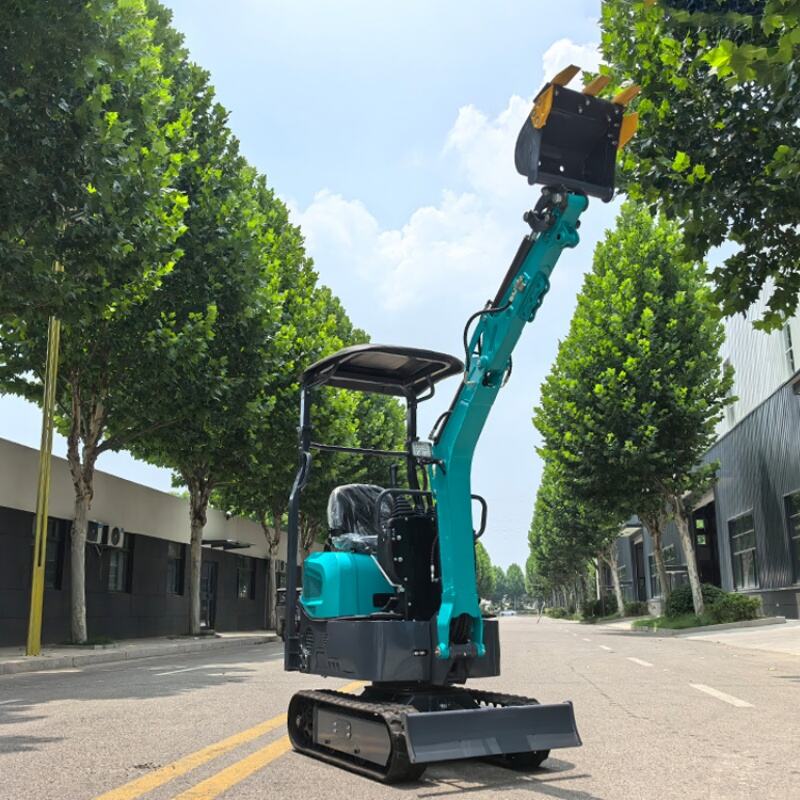

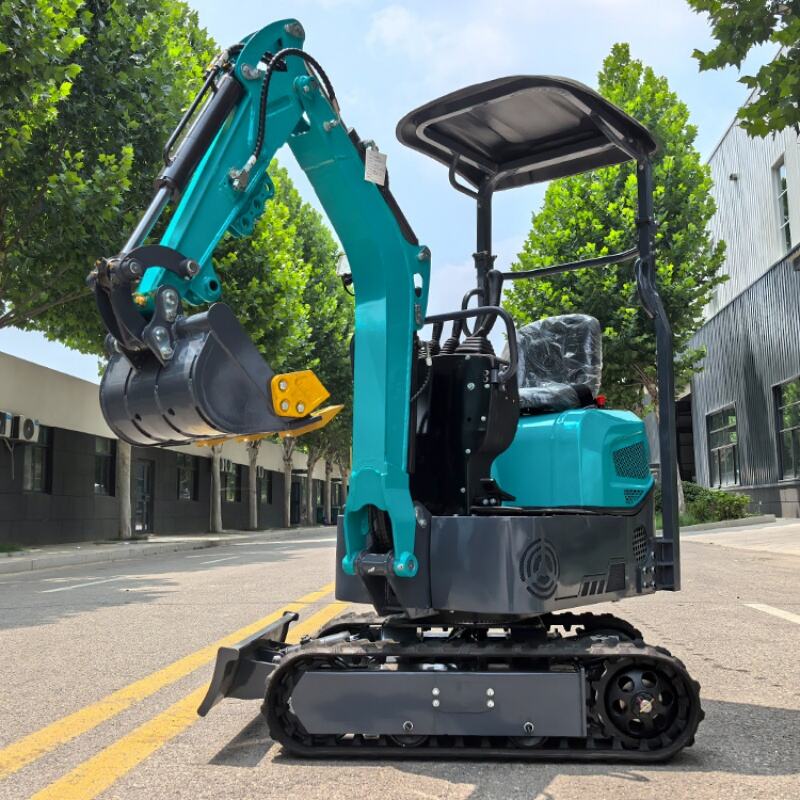

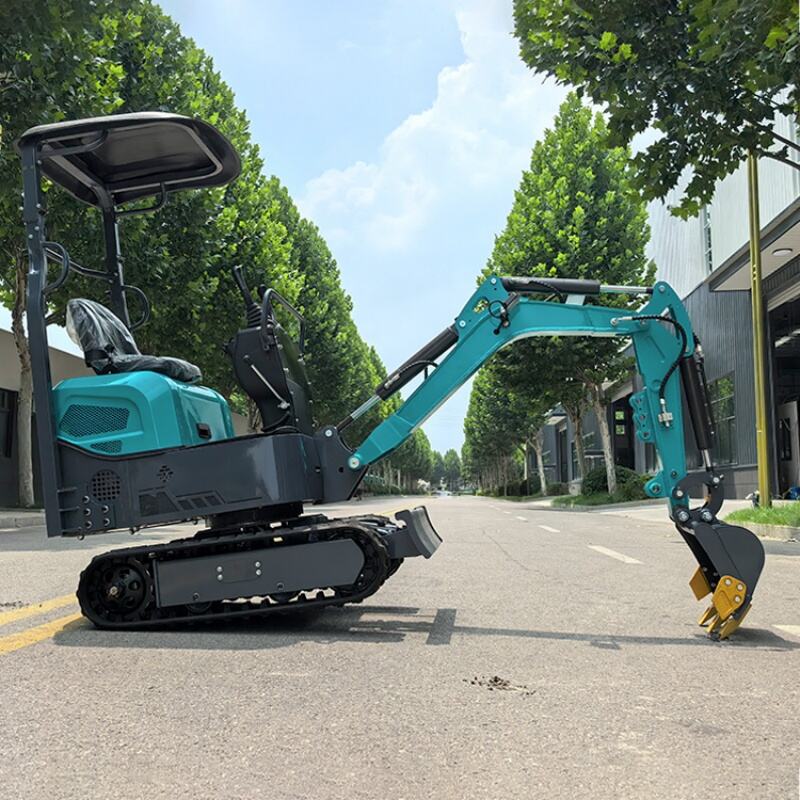

CE Certified Chinese 1.2 Ton Small Excavator Zero Tail Swing Durable for Farm Digging Pipe Laying Customizable Model Engine Pump
PRODUCT OVERVIEW:This machine is made of manganese steel,equipped with a standard 40cm bucket,360-degree rotation, wear-resistant engineering rubber tracks,mechanical operation,hydraulic oil display port,integrated stamping design,plastic
spraying process,bidirectional guide wheels,locking tracks that are not easy to fall off,grease nipples for lubricating pins,
thickened cylinders,and thickened dozer blade.Compact and flexible for narrow operations;simple operation and easy transport; renowned engine for smooth performance;360-degree rotation for convenience;comprehensive after-sales,low failure rate.
● High-quality thickened manganese steel with plastic spraying for rust and corrosion resistance;
● Renowned engine for strong power;
● Hydraulic oil shut-off valve to prevent leaks;thickened dozer blade for higher efficiency;
● Wear-resistant engineering rubber tracks to handle complex terrains;
● Boom with lights for normal use at night orin complex weather.
| CATEGORY | ITEM | SPECIFICATION/DESCRIPTION |

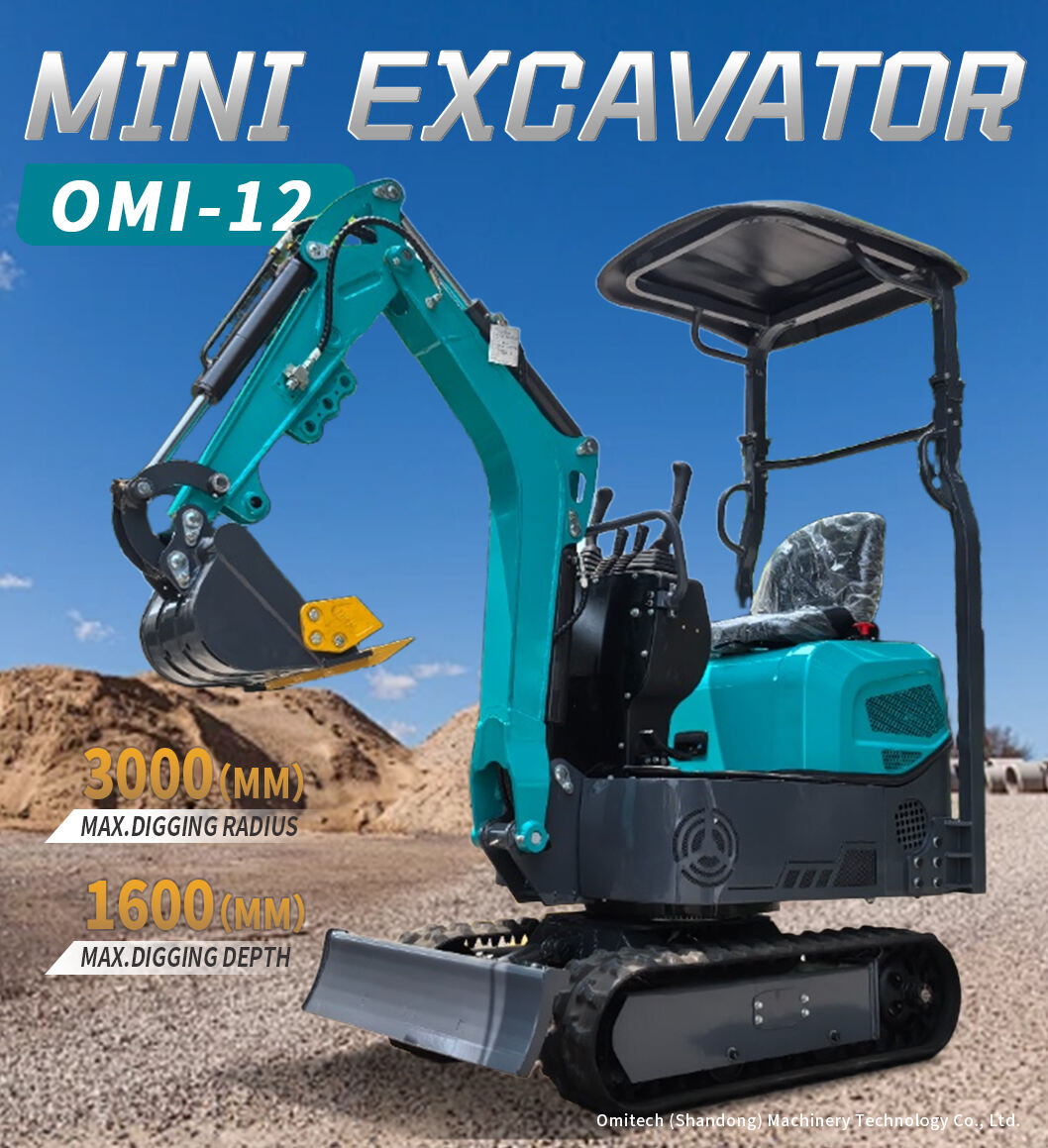

| BASIC PARAMETERS | Product Model | OMI-12 |
| Operating Weight | 1200kg | |
| Overall Dimensions (L×W×H) | 270019002200mm | |
| Cab Type | Standard roof/optional cab | |
| Track Type (Rubber/Steel) | Standard rubber tracks / optional steel tracks | |
| Optional Attachments | Thumb clamp/ Ripper /Grapple /Breaker/ Rake/ Quick hitch /Fork/ Auger / Clamshell bucket / Hopper | |
| Compliance with certification | ISO/CE/GOST/ANSI/SA | |

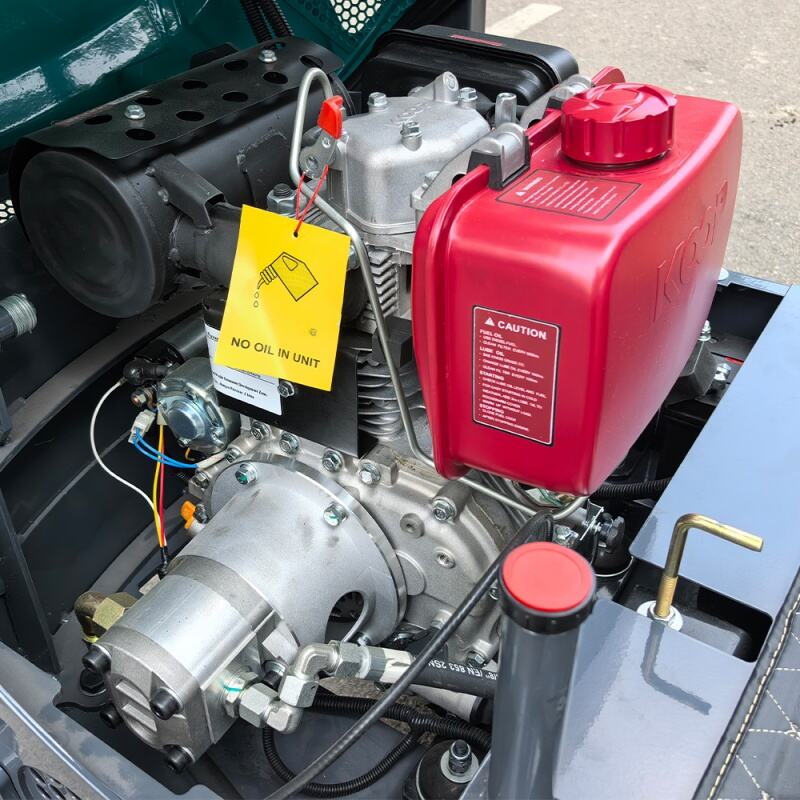

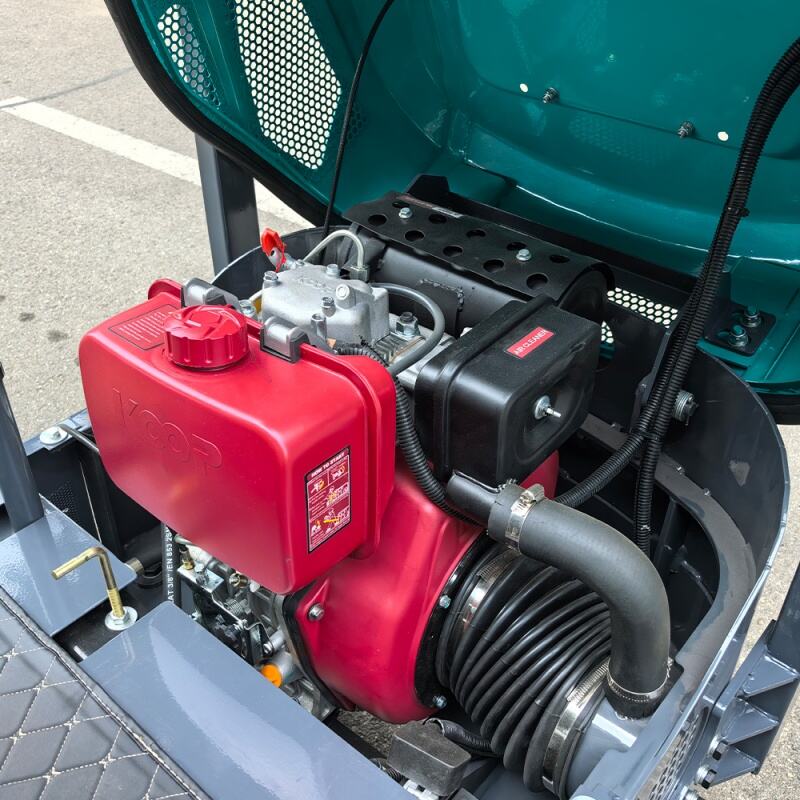

| ENGINE | Engine Brand & Model | Koop 192 /Youpu 192 |
| Rated Power (HP/kW) | 12 HP / 12 HP | |
| Optional Engine Models | Koop / Youpu / Briggs&Stratton / Rato / Koop Euro 5 / Youpu Euro 5 | |
| Emission Standard | EPA/Euro 5 | |
| HYDRAULIC SYSTEM | Hydraulic System Pressure | 16 MPa |
| Main Pump Type | Single pump | |

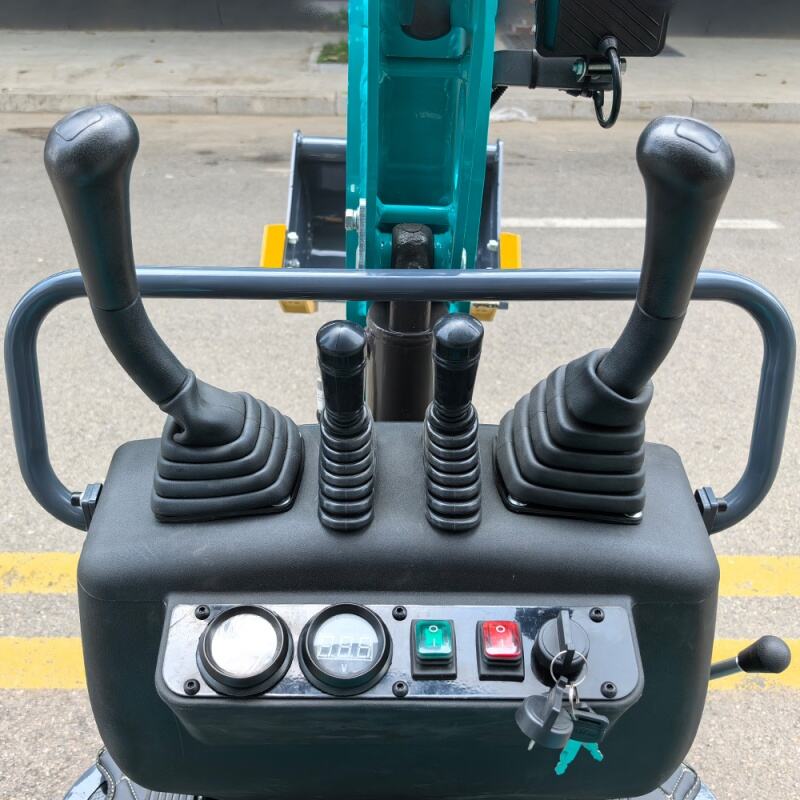

| Control Mode (Hydraulic/Mechanical) | Mechanical | |
| Breaker Line (Yes/No) | Yes | |
| Boom Swing | Optional | |
| WORKING PARAMETERS | Max. Digging Depth | 1600 mm |
| Max. Digging Radius | 3000 mm | |
| Max. Digging Force | 10 KN | |
| Min. Operating Radius | 750 mm | |
| Bucket Capacity | 0.03 m³ | |
| Bucket Width | 400 mm | |
| Max. Blade Lift Height | 160 mm | |
| Max. Blade Lowering Depth | 210 mm | |
| Travel Speed | 2.2-4.3 km/h | |
| Gradeability | 35° | |
| Track Width | 180 mm | |
| Track Gauge | 580 mm |
