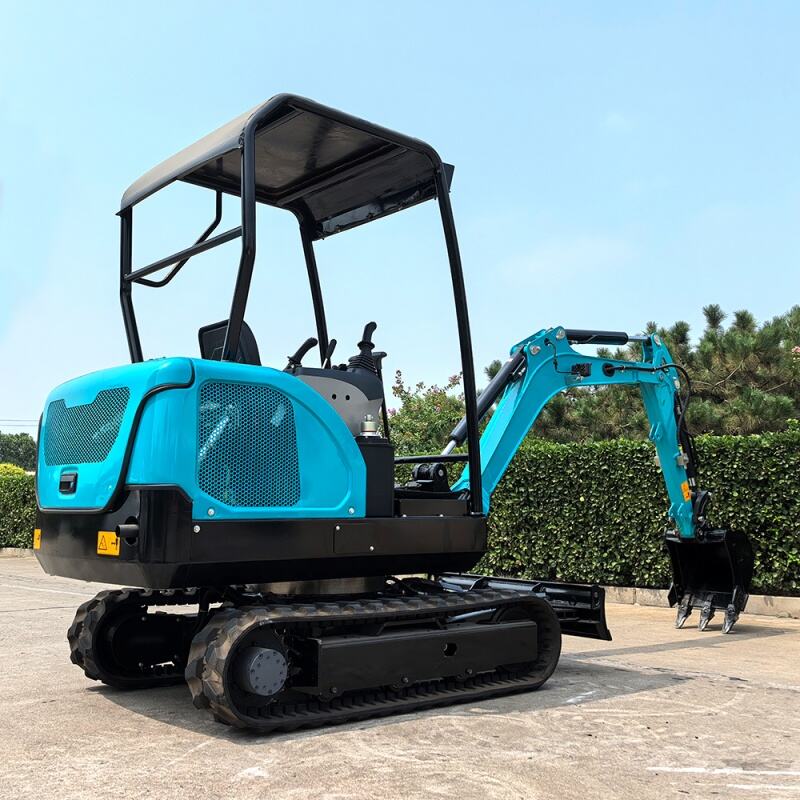

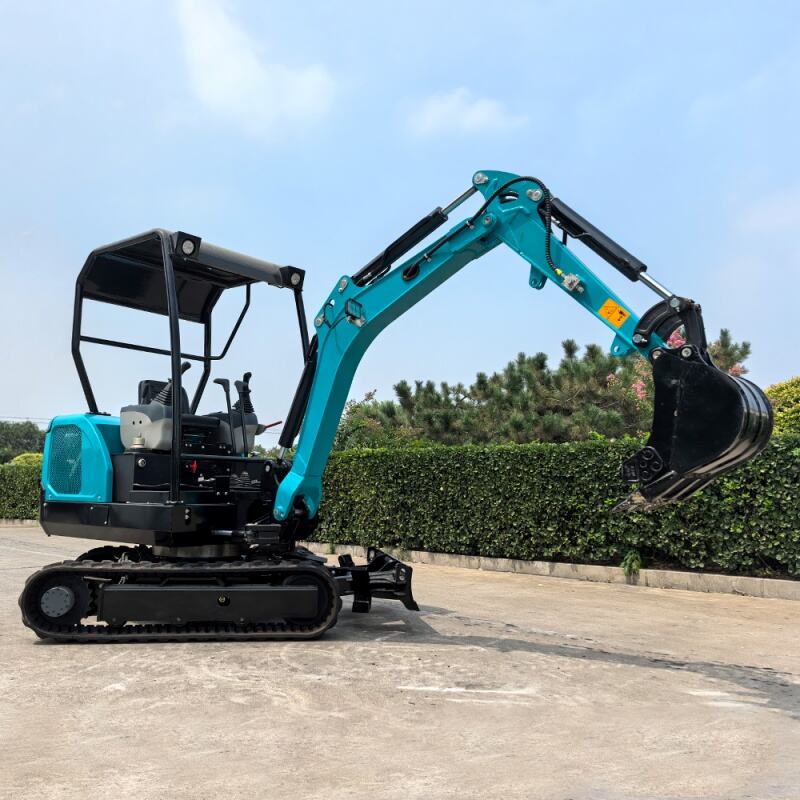

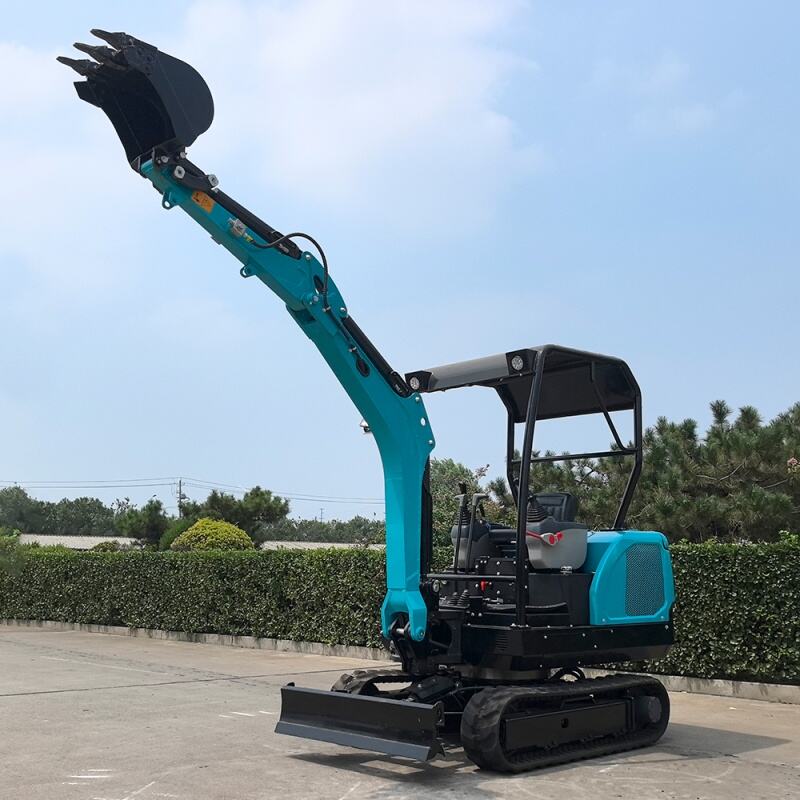

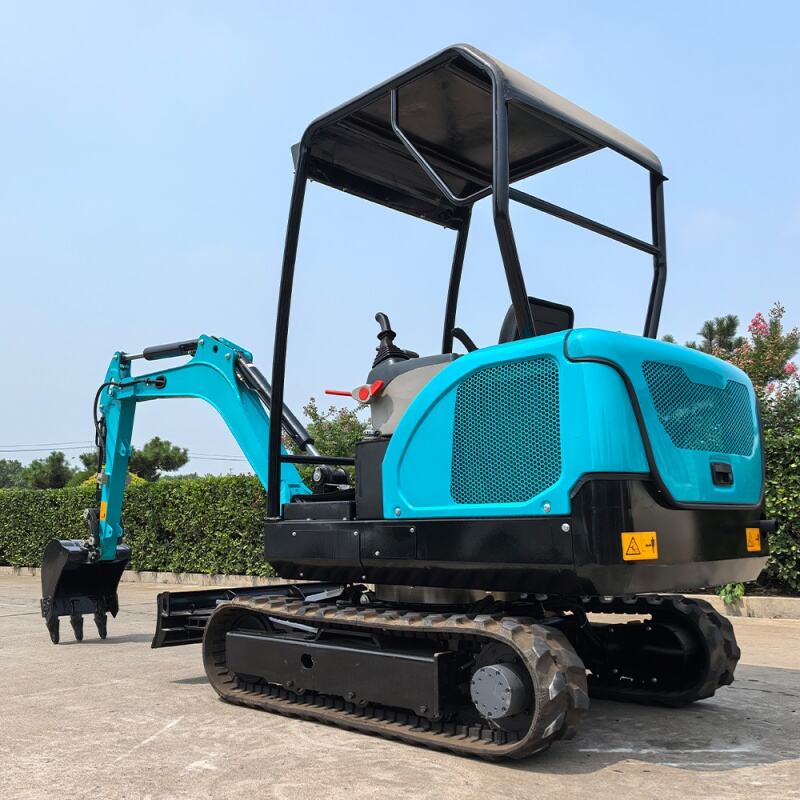

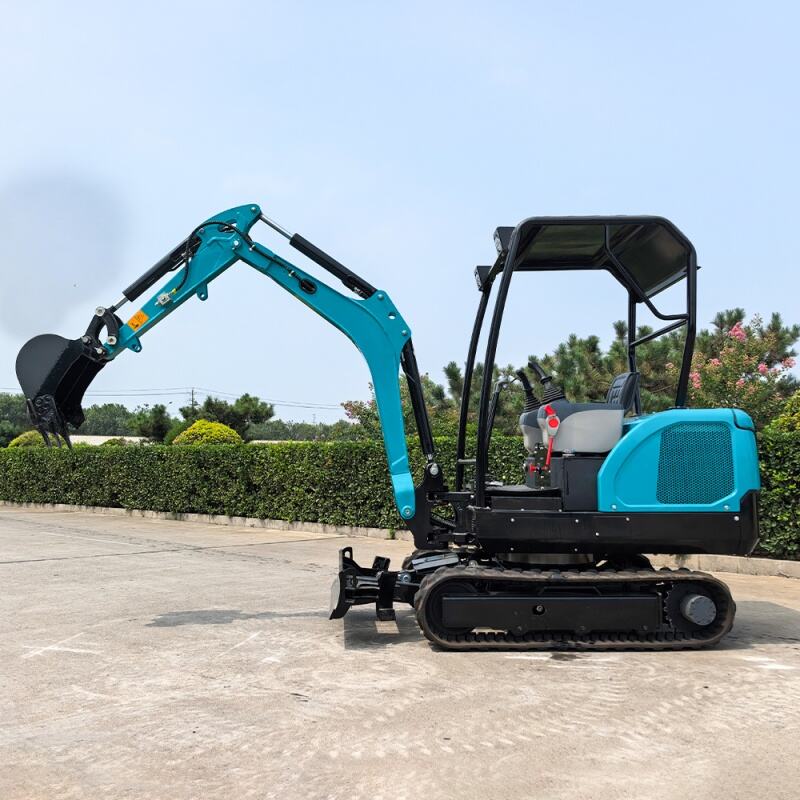

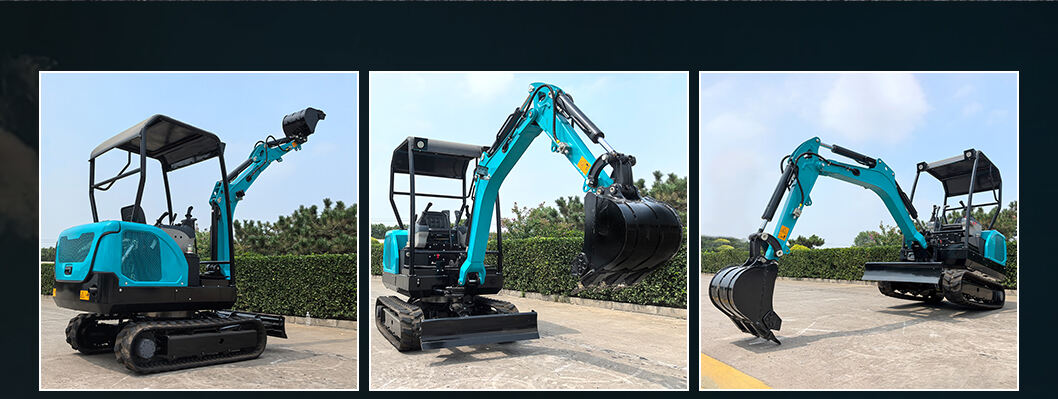

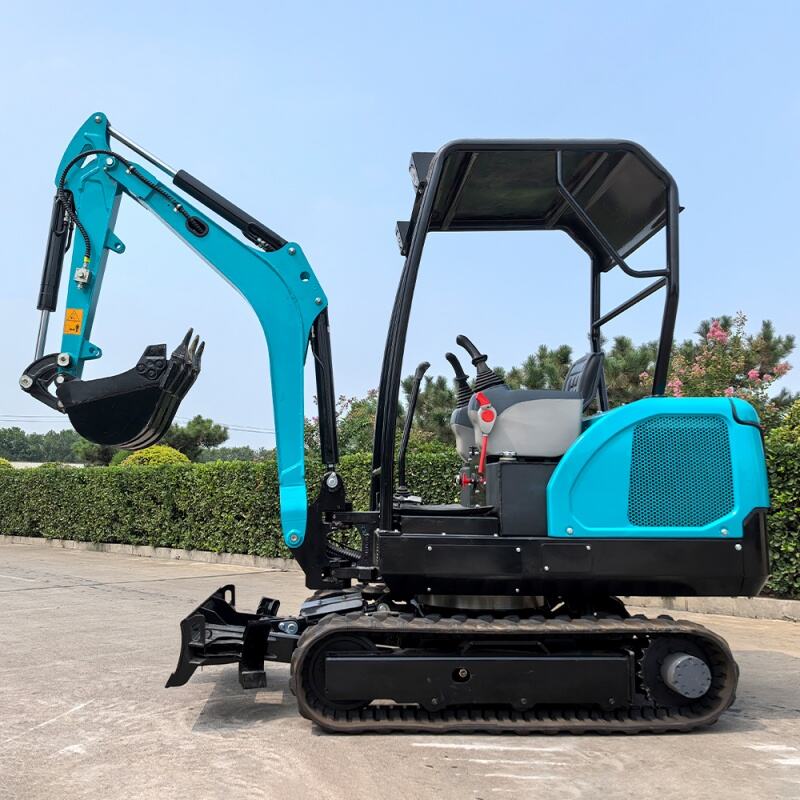

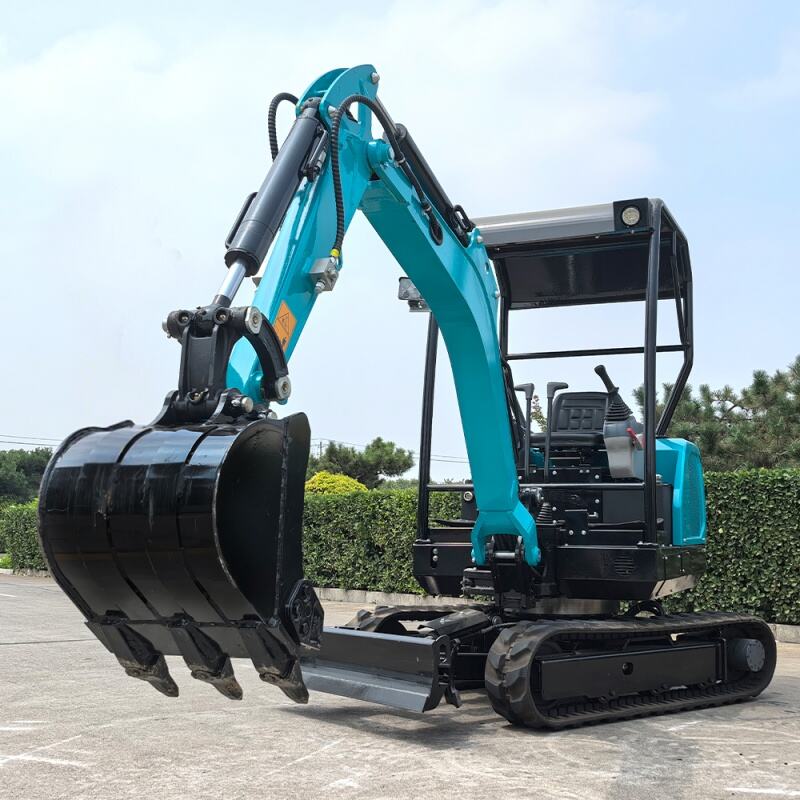

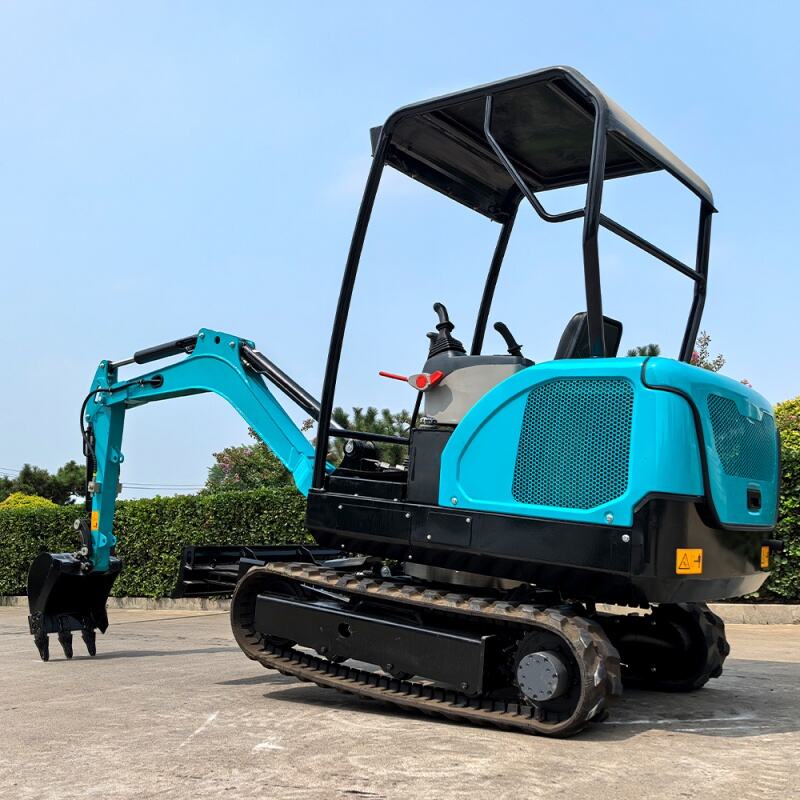

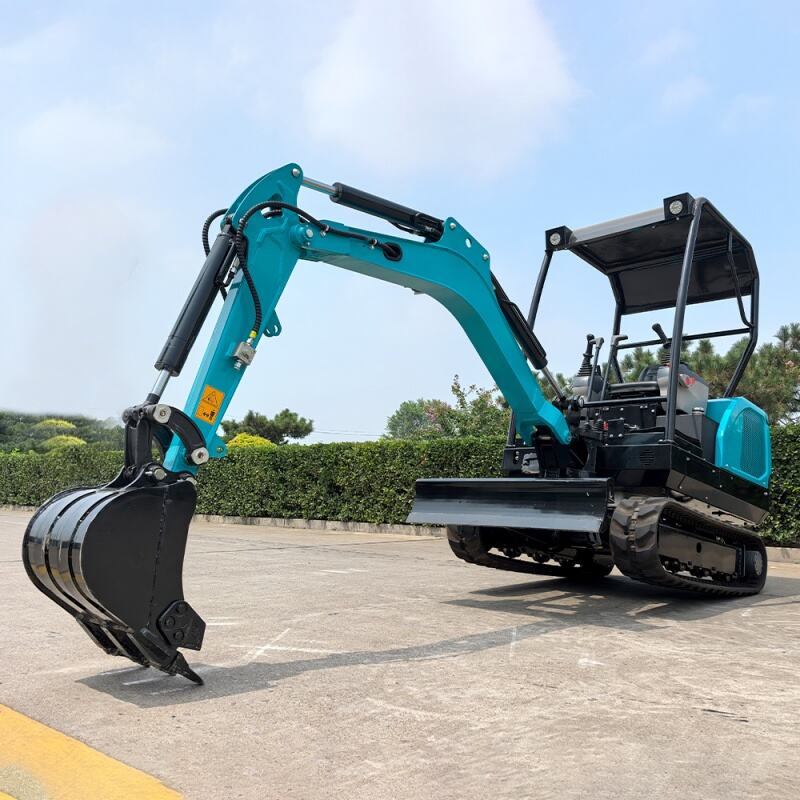

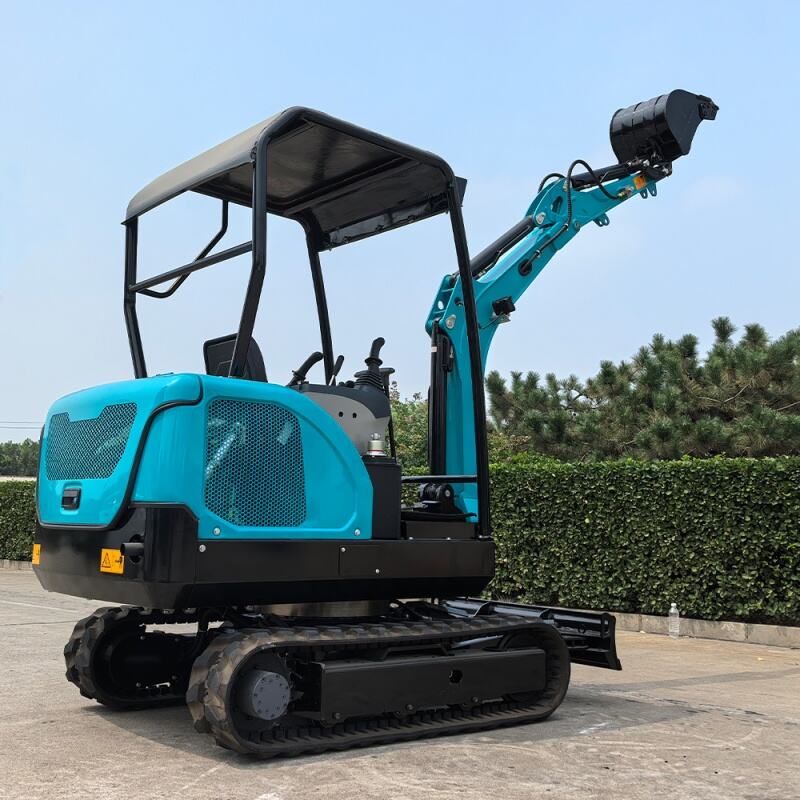

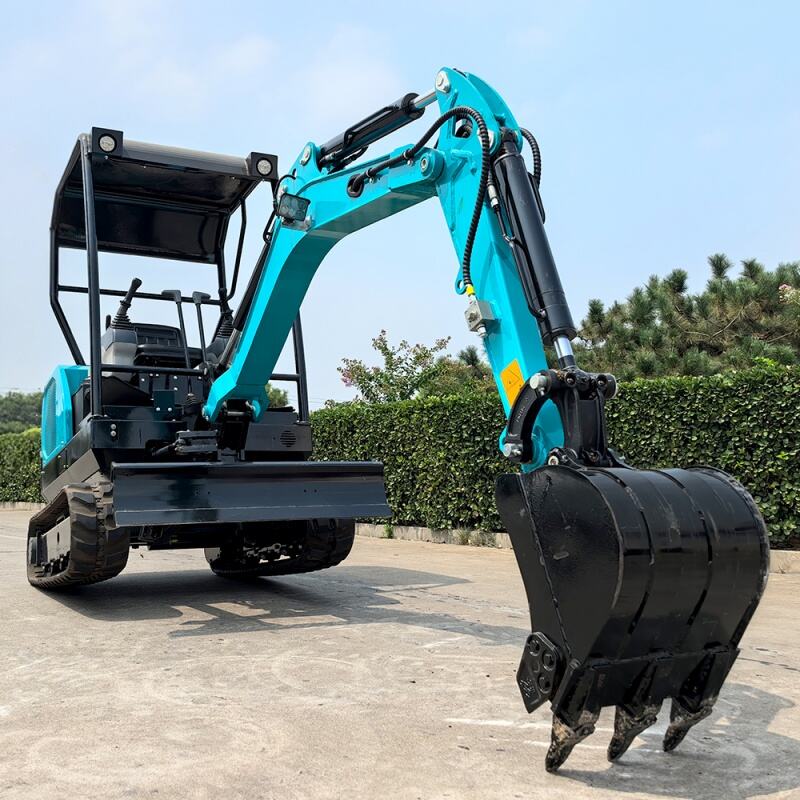

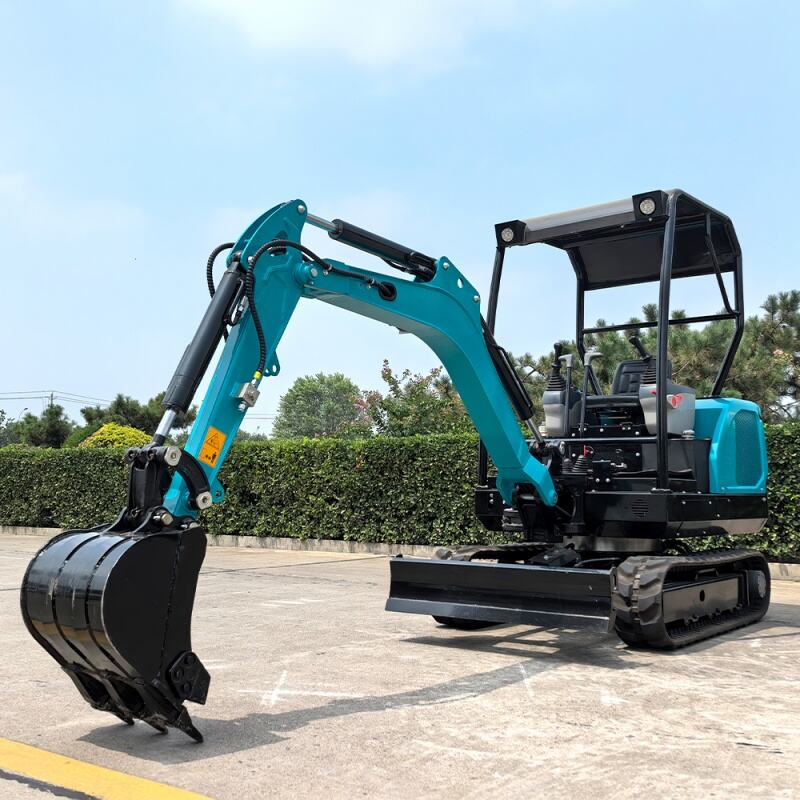

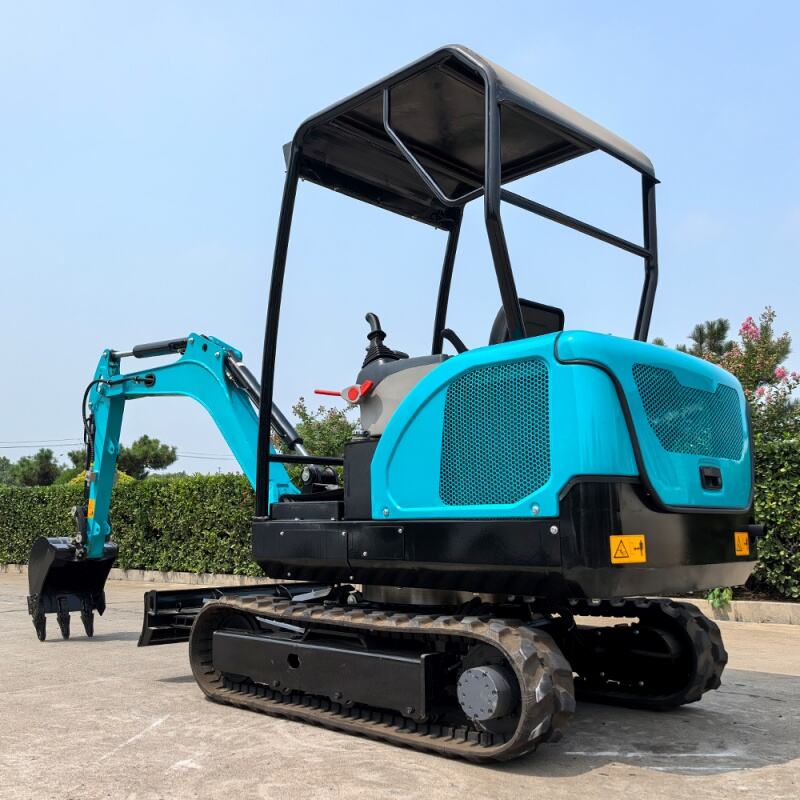

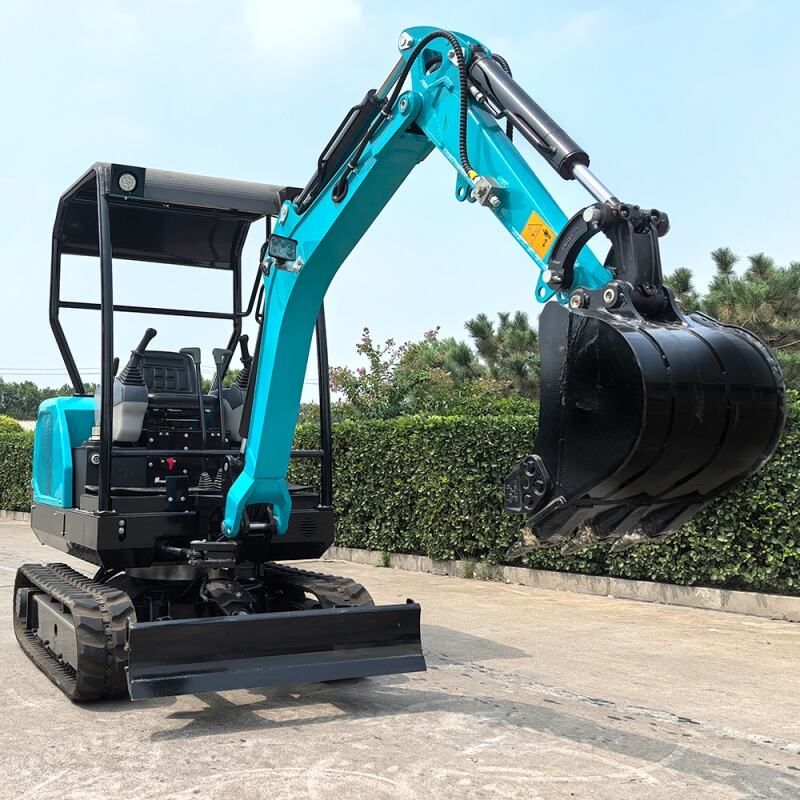

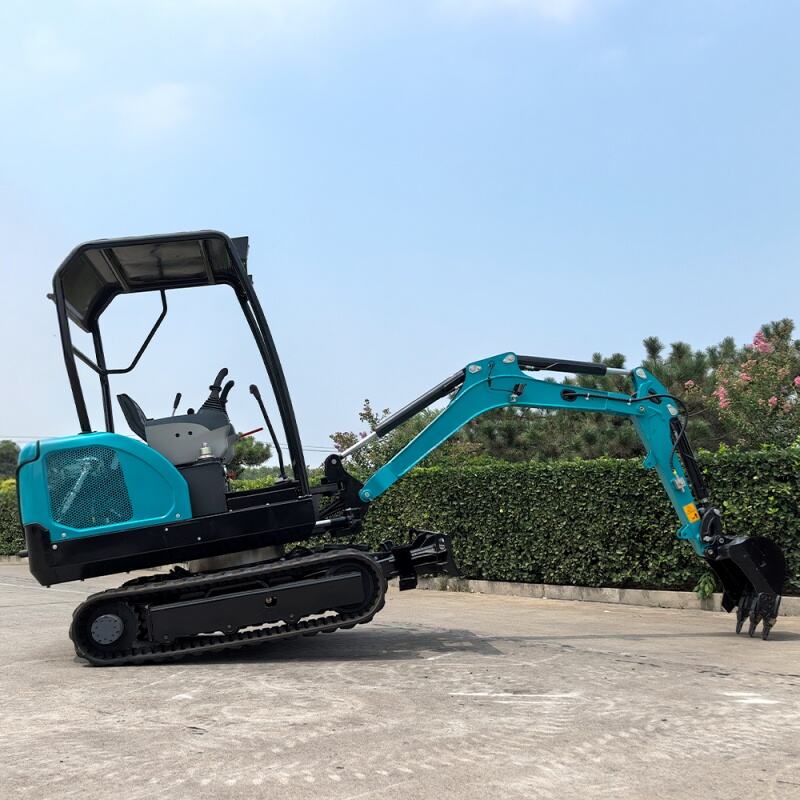

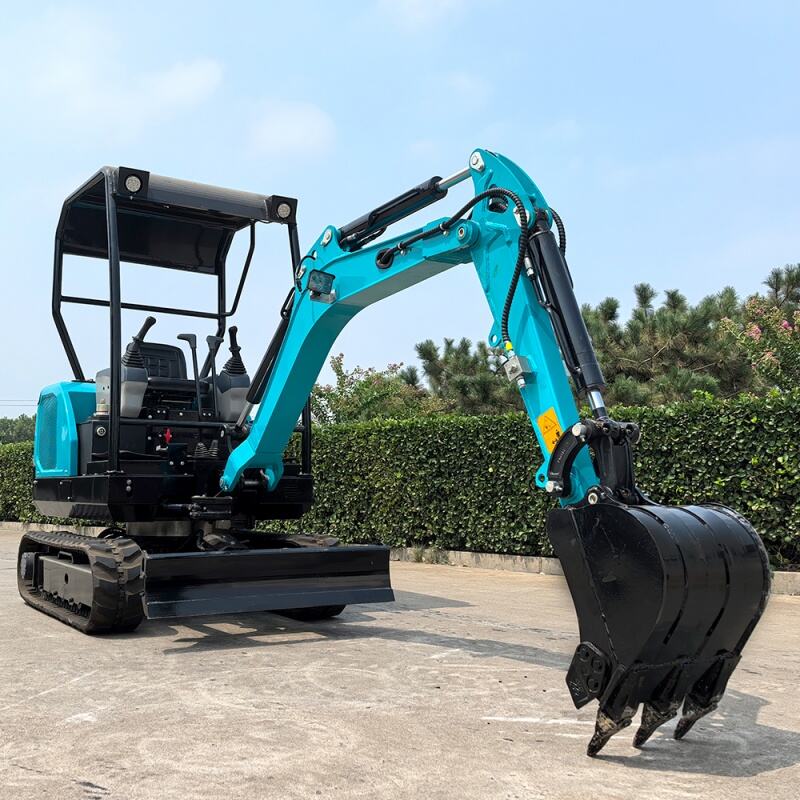

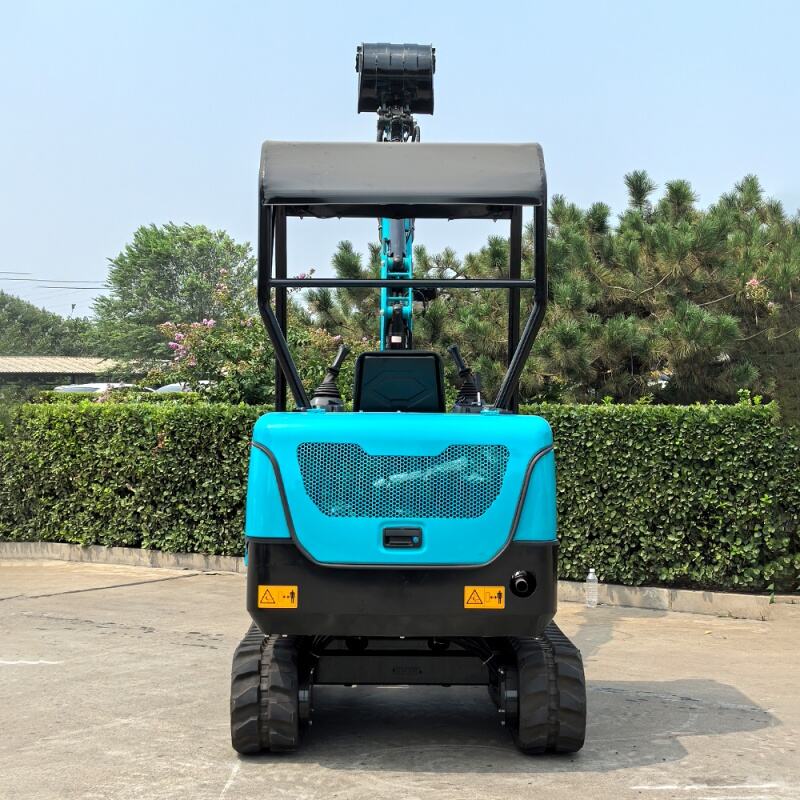

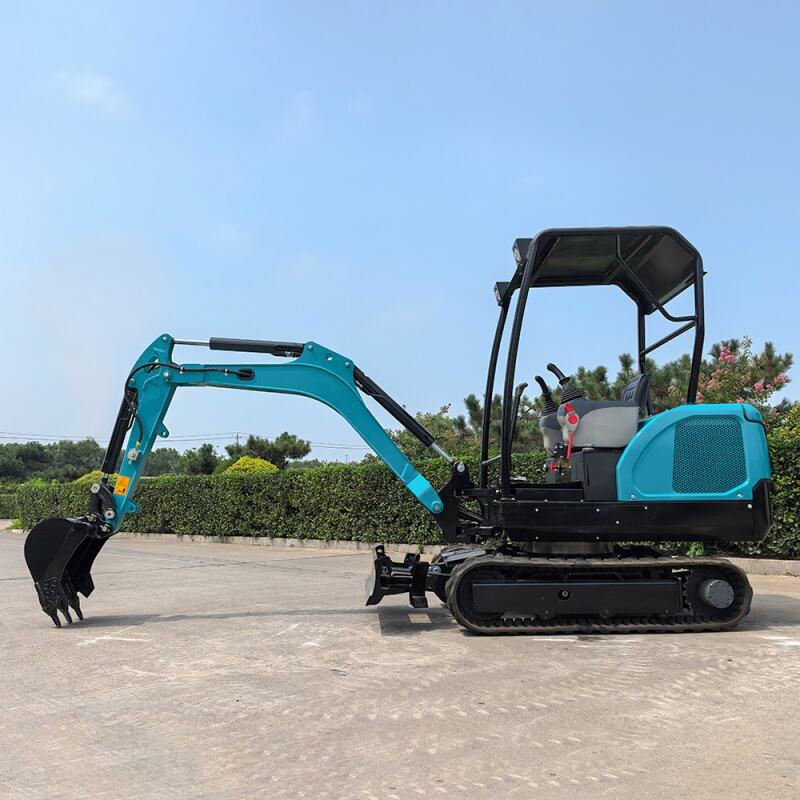

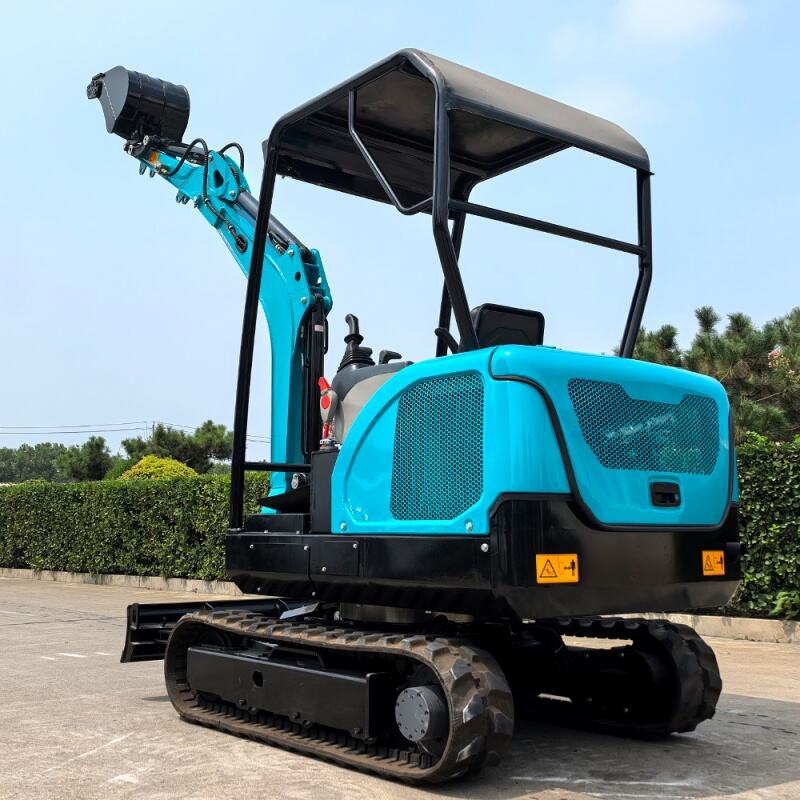

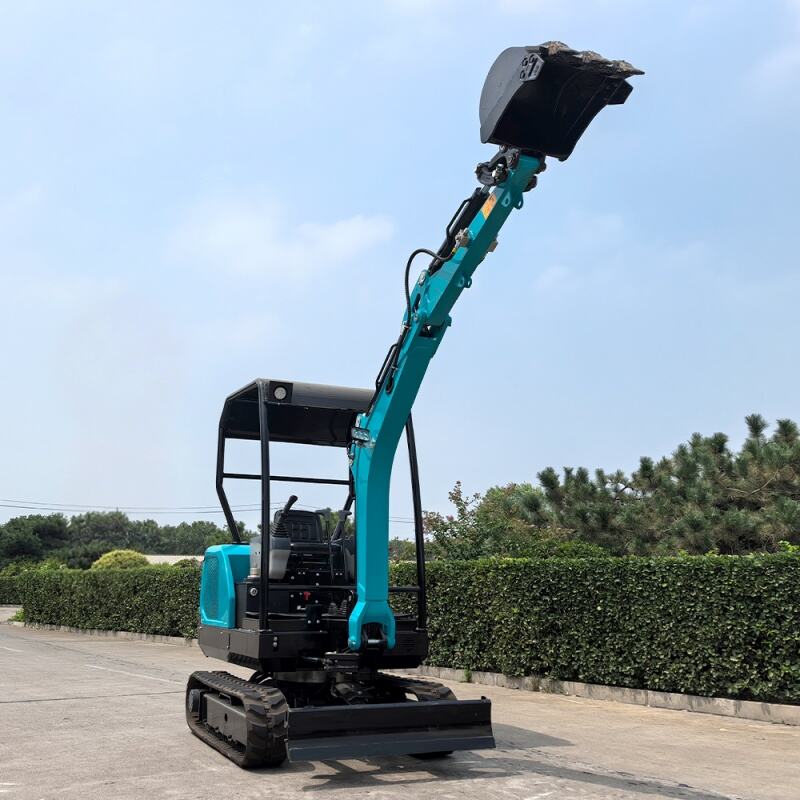

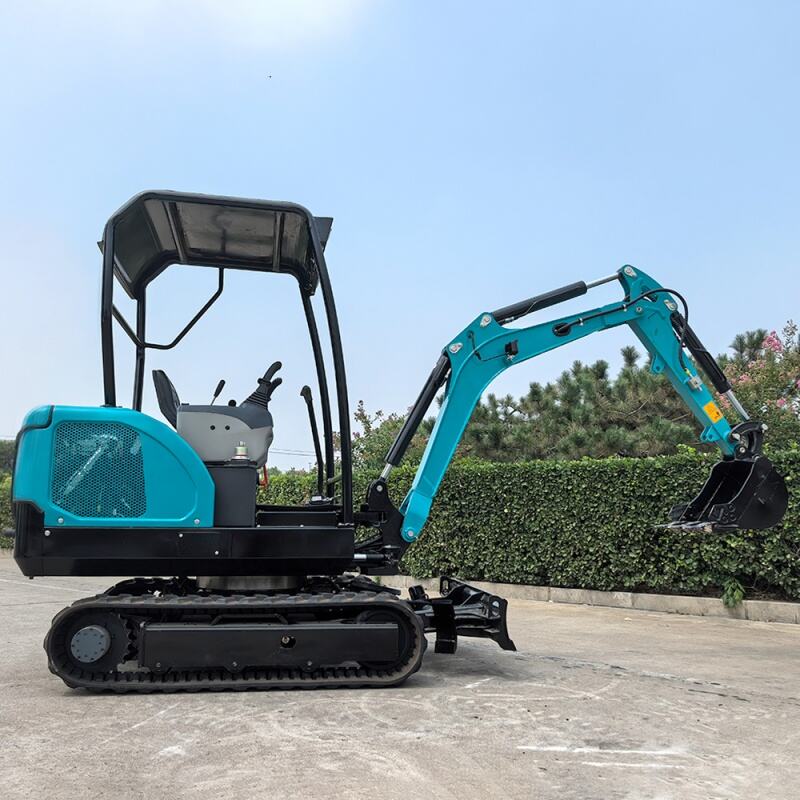

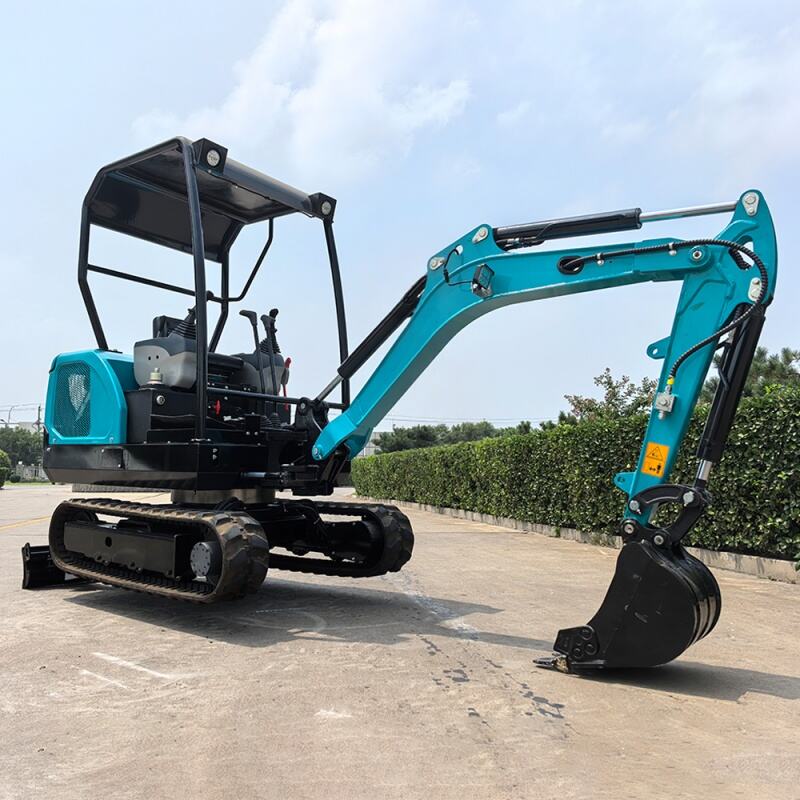

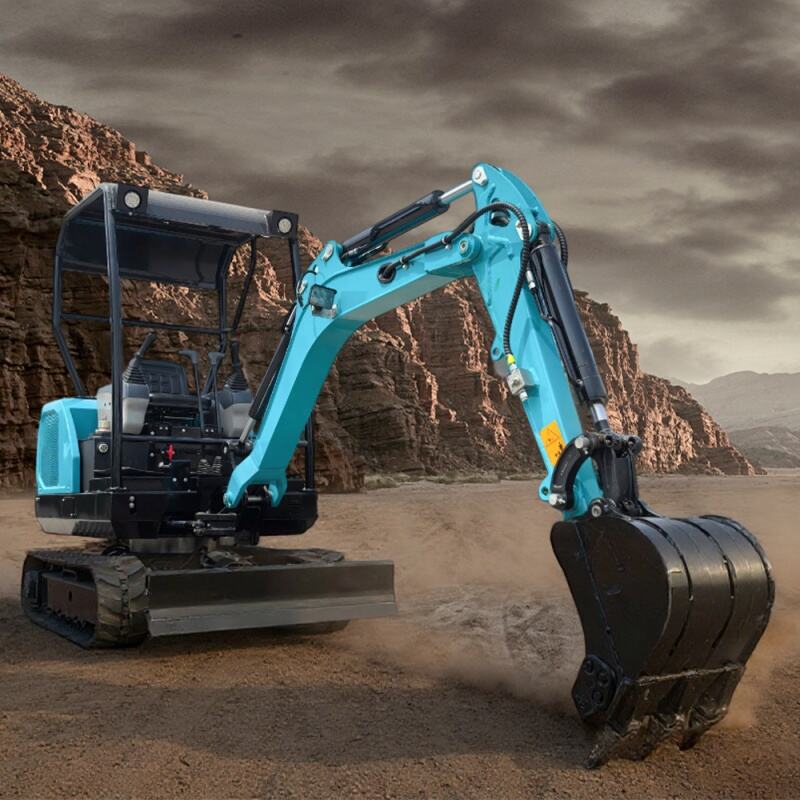

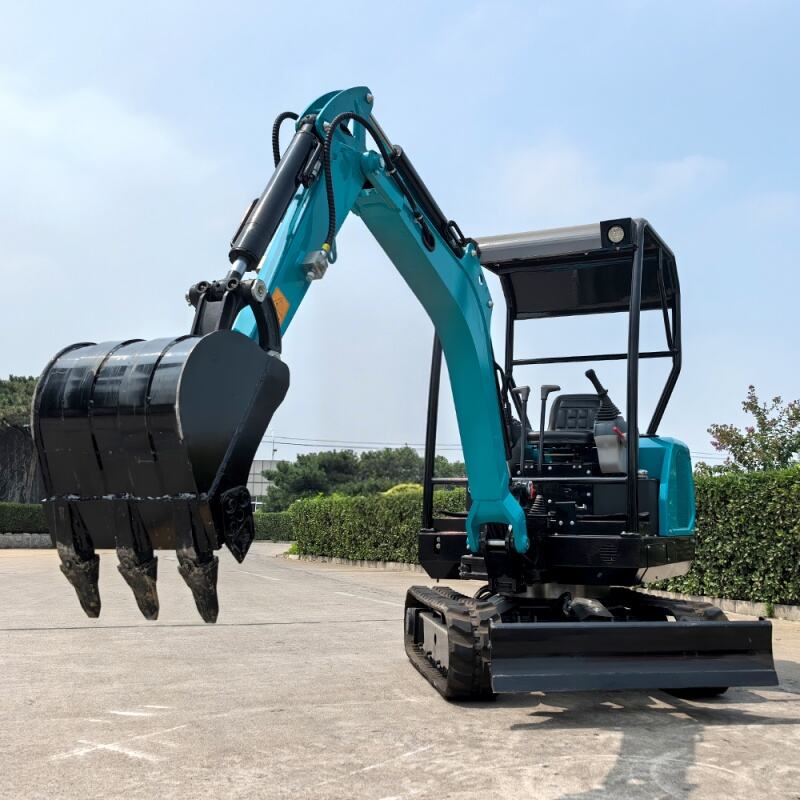

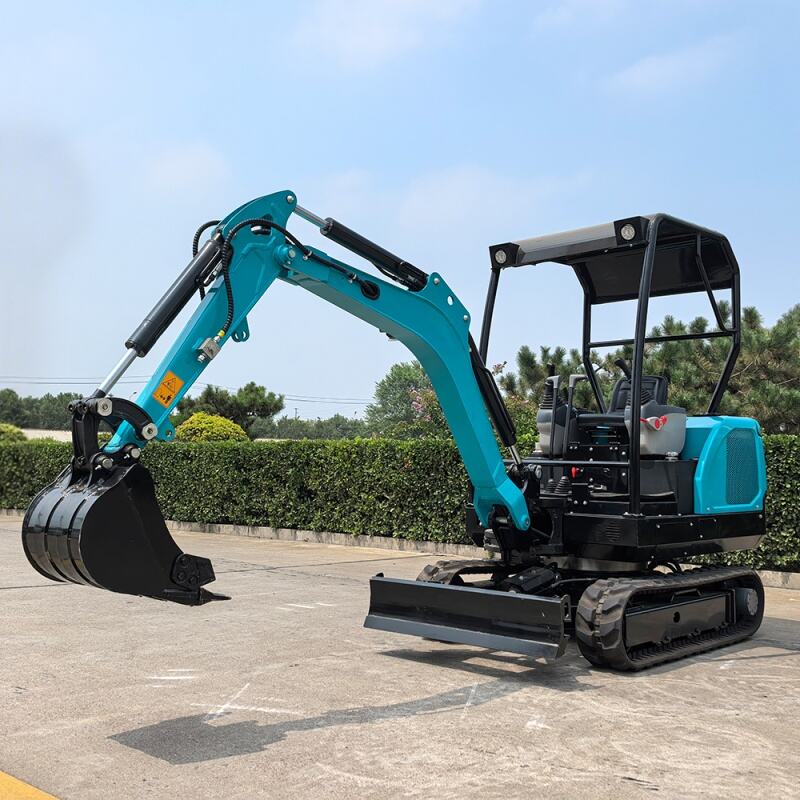

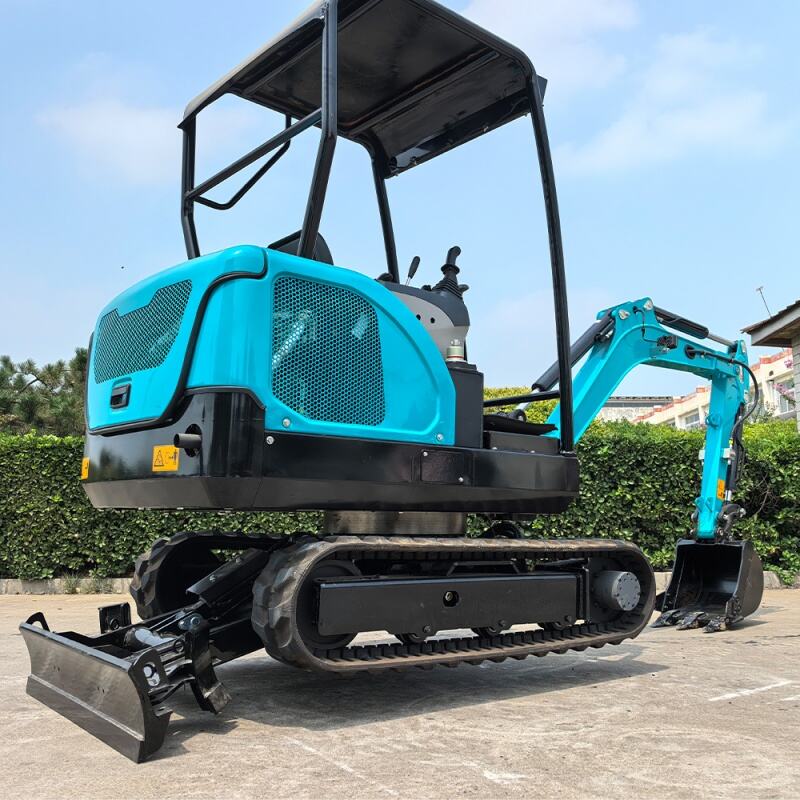

CE Certified Chinese 2.5 Ton Small Excavator Zero Tail Swing Durable for Farm Digging Pipe Laying Customizable Model Engine Pump

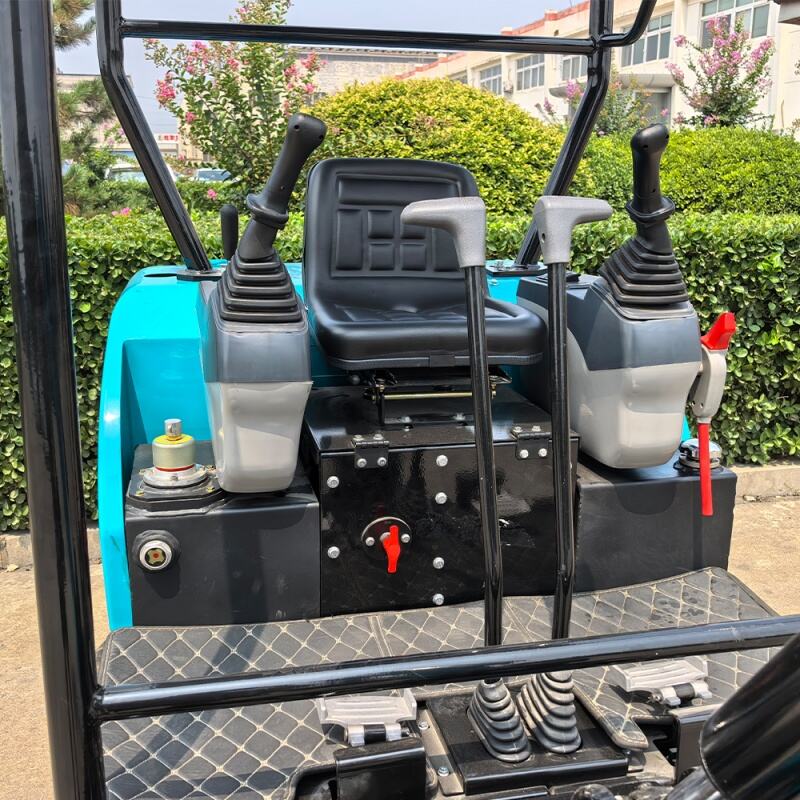

PRODUCT OVERVIEW:This machine is made of manganese steel,equipped with a standard 40cm bucket,360-degree rotation, wear-resistant engineering rubber tracks,mechanical operation,hydraulic oil display port,integrated stamping design,plastic
spraying process,bidirectional guide wheels,locking tracks that are not easy to fall off,grease nipples for lubricating pins,
thickened cylinders,and thickened dozer blade.Compact and flexible for narrow operations;simple operation and easy transport; renowned engine for smooth performance;360-degree rotation for convenience;comprehensive after-sales,low failure rate.
● High-quality thickened manganese steel with plastic spraying for rust and corrosion resistance;
● Renowned engine for strong power;

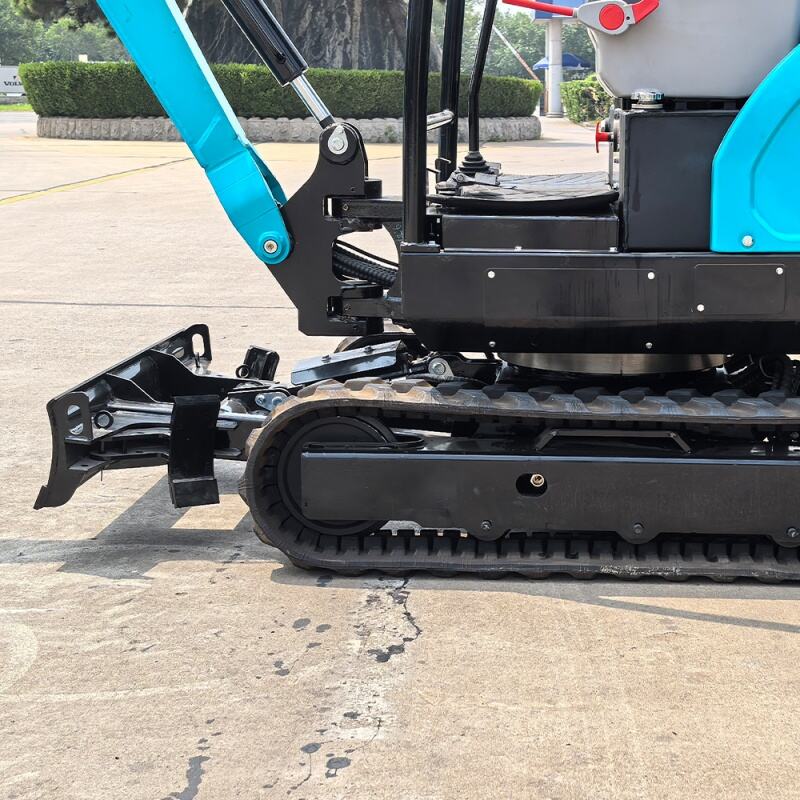

● Hydraulic oil shut-off valve to prevent leaks;thickened dozer blade for higher efficiency;
● Wear-resistant engineering rubber tracks to handle complex terrains;
● Boom with lights for normal use at night orin complex weather.
| Item | Specification/Description |
| Product Model | OMI-25 |
| Operating Weight | 2500kg |
| Bucket Capacity | 0.04m³ |
| Chassis Width | 1100mm-1400mm |
| Track Length | 1220mm |
| Gradeability | 40° |
| Chassis Ground Clearance | 385mm |
| Track Width | 230mm |
| Volume of fuel tank | 16L |
| Overall Dimension | 3700*1400*2203mm |
| Transport Length | 3700mm |
| Excavator Height | 2203mm |
| Hydraulic flow | 50L/Min |
| Hydraulic tank capacity | 16L |
| Working pressure | 16Mpa |

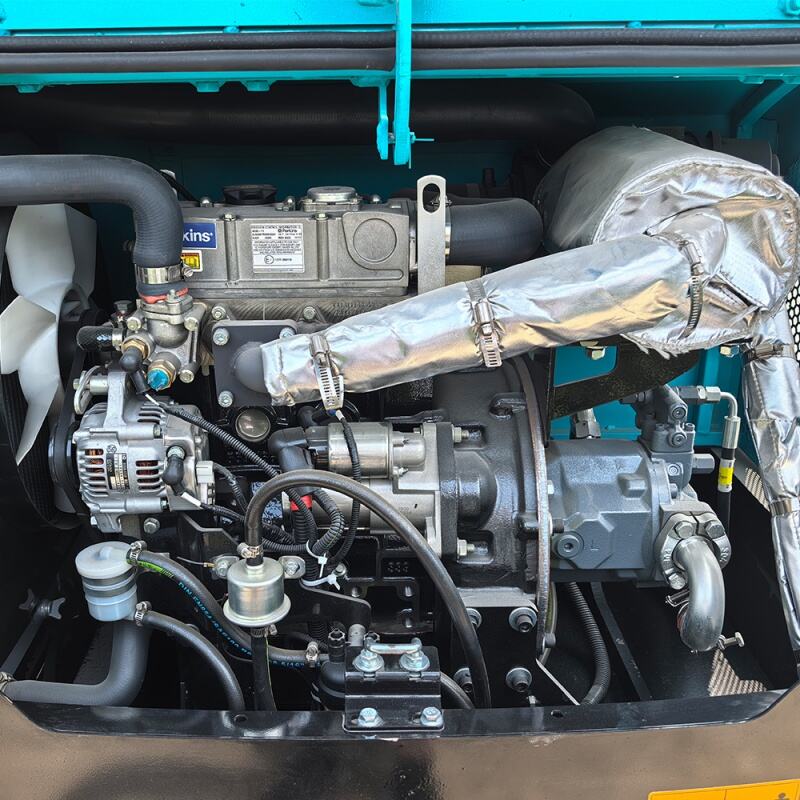

| Engine | Laidong 385 Diesel Engine |
| Engine Power | 18.6KW/25HP |
| Euro5&EPA Engine optional | YANMAR3TNV80 |
| Max.Digging Height | 3200mm |
| Max.Dumping Height | 2290mm |
| Max.Digging Depth | 2241mm |
| Max.Digging Radius | 3800mm |
| Turning Radius | 1620mm |
| Bucket excavating force | 16KN |
| Operating Weight | 2400kg |
| Configuration | Valve:Beifang BrandPump:Xingzou BrandPiston pump load sensitive |
