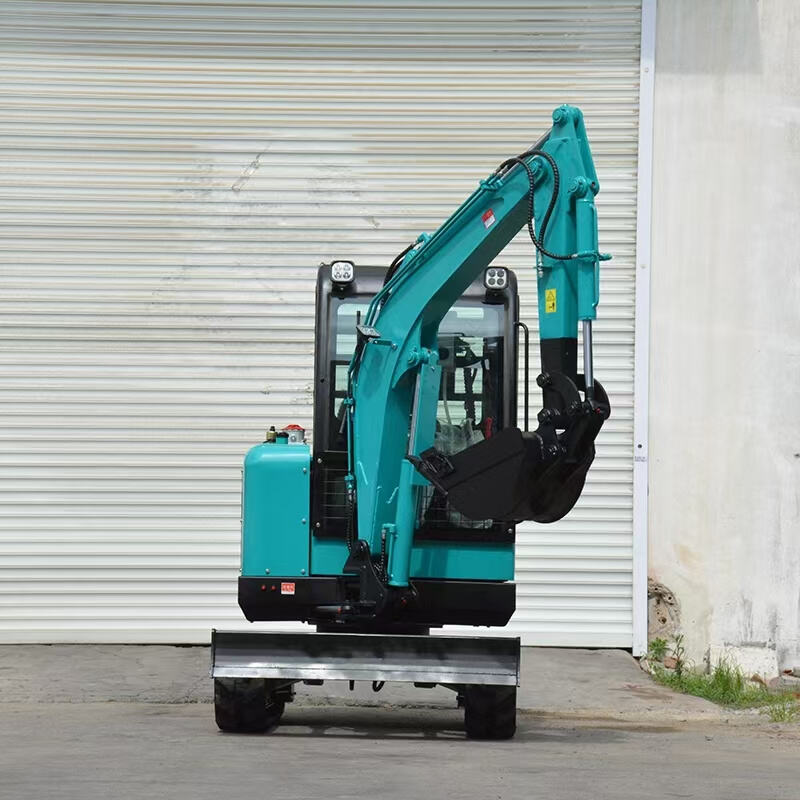

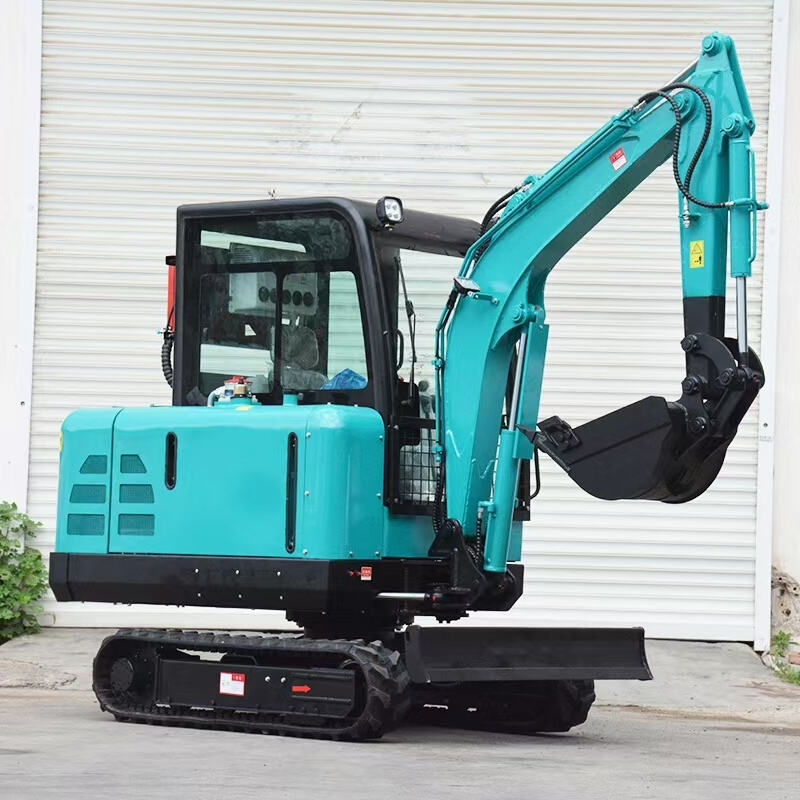

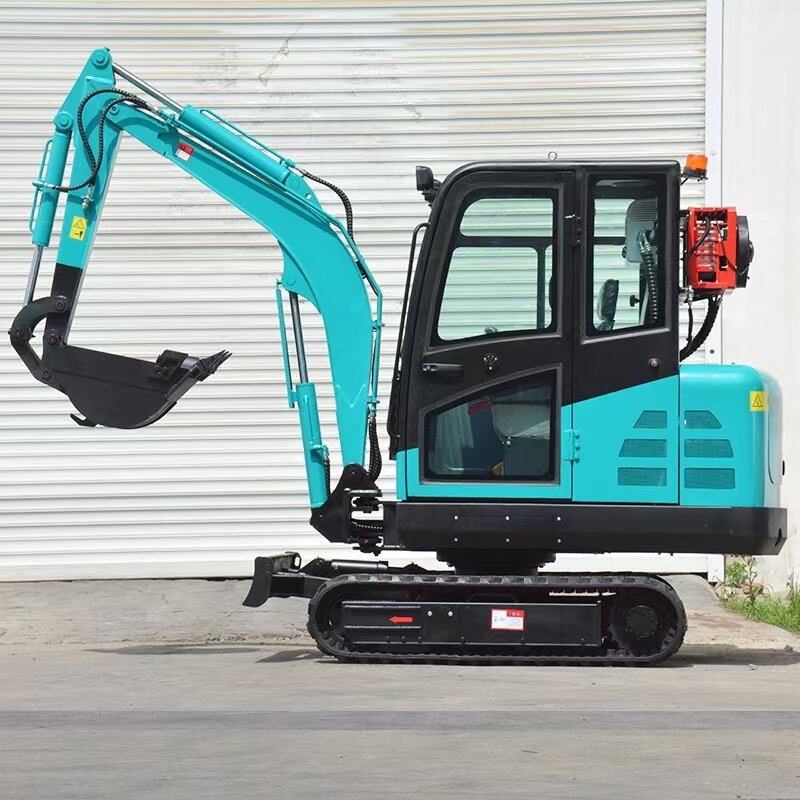

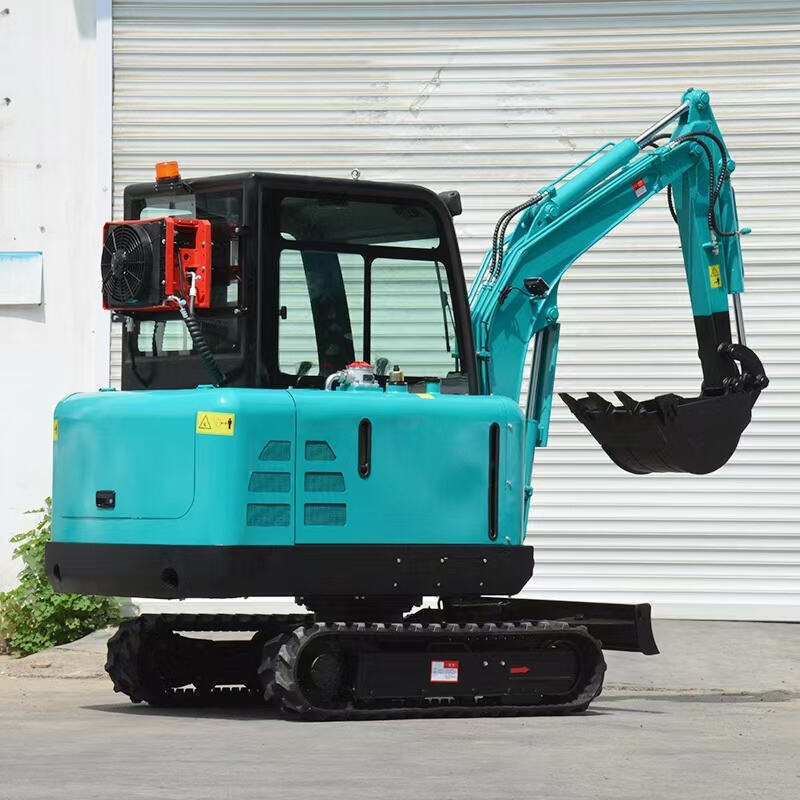

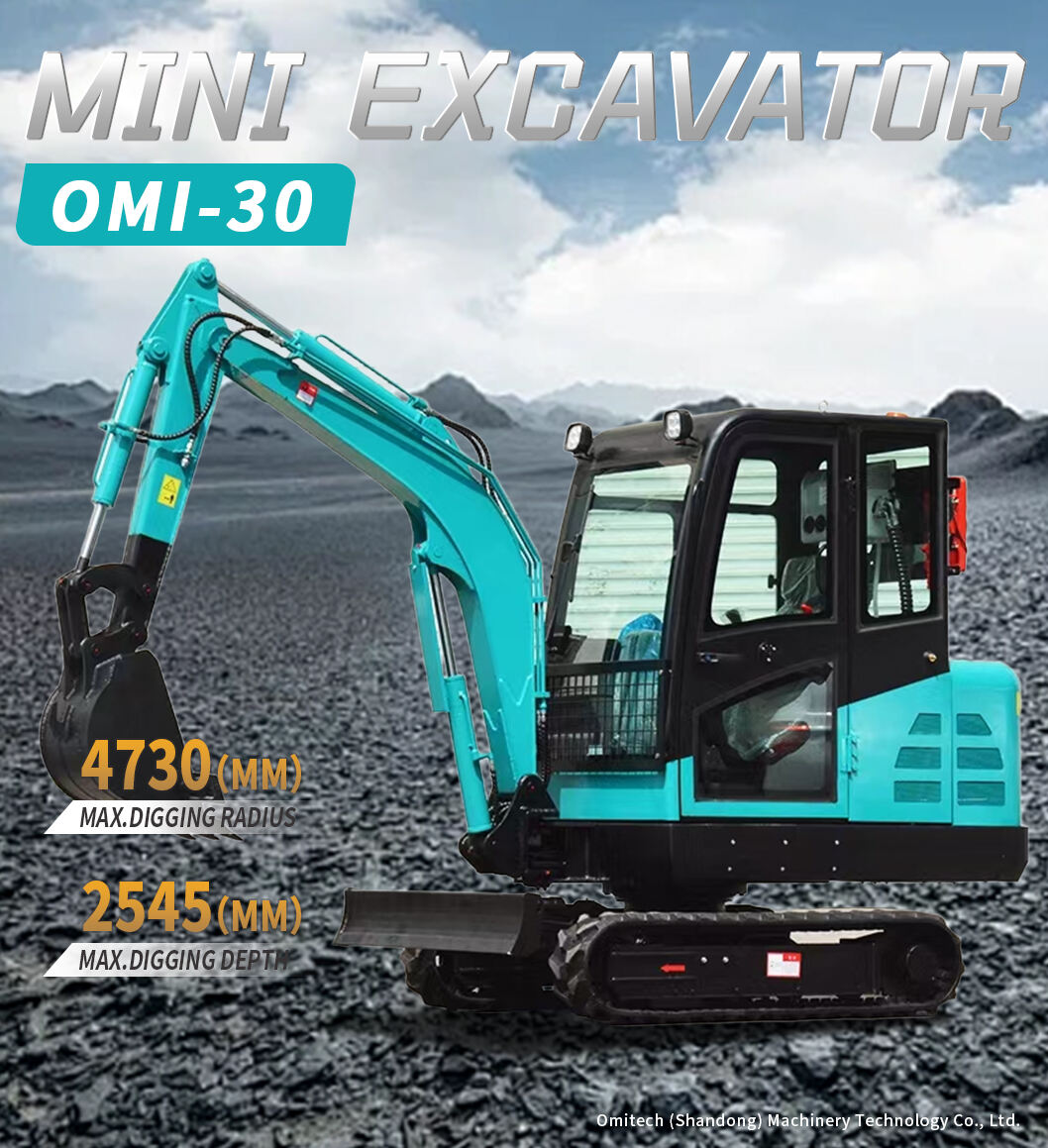

CE Certified Chinese 3.0 Ton Small Excavator Zero Tail Swing Durable for Farm Digging Pipe Laying Customizable Model Engine Pump

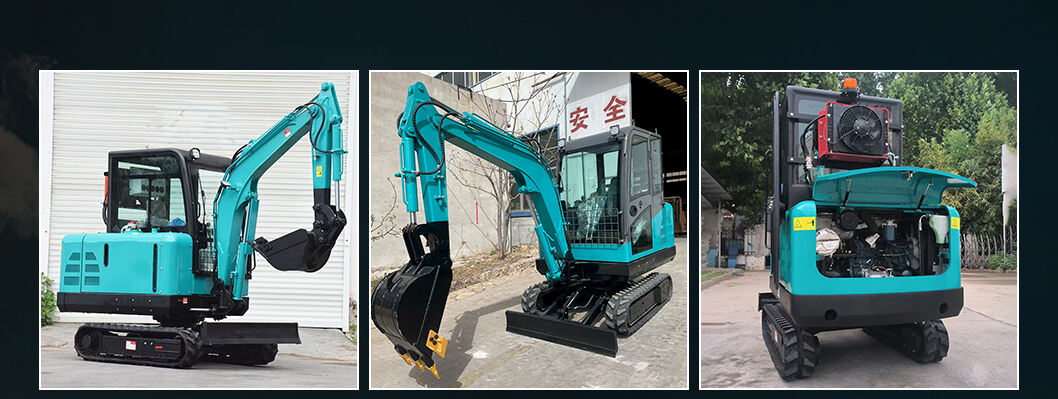

PRODUCT OVERVIEW:This machine is made of manganese steel,equipped with a standard 40cm bucket,360-degree rotation, wear-resistant engineering rubber tracks,mechanical operation,hydraulic oil display port,integrated stamping design,plastic
spraying process,bidirectional guide wheels,locking tracks that are not easy to fall off,grease nipples for lubricating pins,
thickened cylinders,and thickened dozer blade.Compact and flexible for narrow operations;simple operation and easy transport; renowned engine for smooth performance;360-degree rotation for convenience;comprehensive after-sales,low failure rate.
● High-quality thickened manganese steel with plastic spraying for rust and corrosion resistance;
● Renowned engine for strong power;
● Hydraulic oil shut-off valve to prevent leaks;thickened dozer blade for higher efficiency;
● Wear-resistant engineering rubber tracks to handle complex terrains;
● Boom with lights for normal use at night orin complex weather.
| CATEGORY | ITEM | SPECIFICATION/DESCRIPTION |
| BASIC PARAMETERS | Product Model | OMI-30 |
| Operating Weight | 3000kg | |
| Overall Dimensions (L×W×H) | 4120×2400×2350 mm | |
| Cab Type | Standard cab/optional roof | |
| Track Type(Rubber/Steel) | Standard rubber tracks /optional steel tracks | |
| Optional Attachments | Breaker/Rake/Quick hitch /Thumb clamp/Ripper/Grapple /Fork/Auger/Clamshell bucket /Hopper | |
| Compliance with certification | ISO/CE/GOST/ANSI/SA | |
| ENGINE | Engine Brand&Model | Yunnei 490 /Kubota/Yammer |
| Rated Power(HP/kW) | 50HP/30 HP/30HP | |
| Optional Engine Models | Yunnei 490 /Kubota /Yammer | |
| Emission Standard | EPA/Euro 5 | |
| HYDRAULIC SYSTEM | Hydraulic System Pressure | 22 MPa |
| Main Pump Type | Plunger pump/Pear pump | |
| Control Mode(Pilot/Mechanical) | Pilot | |
| Breaker Line (Yes/No) | Yes | |
| WORKING PARAMETERS | Boom Swing | Optional |
| Max.Digging Depth | 2545mm | |
| Max.Digging Radius | 4730 mm | |
| Max.Digging Force | 21KN | |
| Min.Operating Radius | 2000 mm | |
| Bucket Capacity | 0.1m³ | |
| Bucket Width | 600 mm | |
| Max.Blade Lift Height | 325mm | |
| Max.Blade Lowering Depth | 350 mm | |
| Travel Speed | 2.2-4.3km/h | |
| Gradeability | 35° | |
| Track Width | 230 mm | |
| Track Gauge | 850 mm |
