Free Shipping Mini Excavator 20 Ton CE EURO 5 EPA Kubota Engine Bagger Small Crawler Excavator 1 Tons 2 Digger Home Excavators

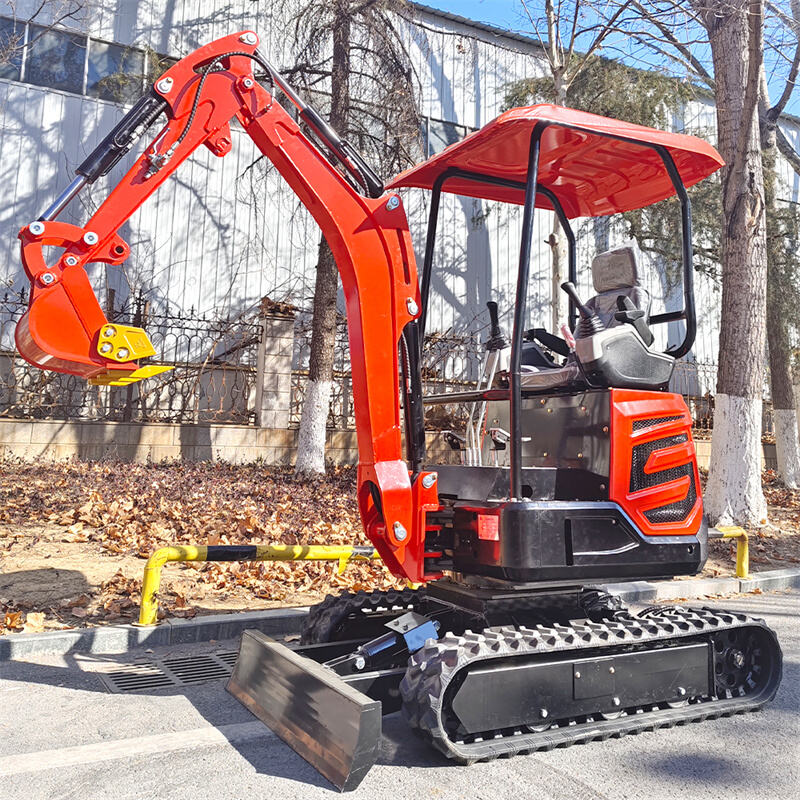

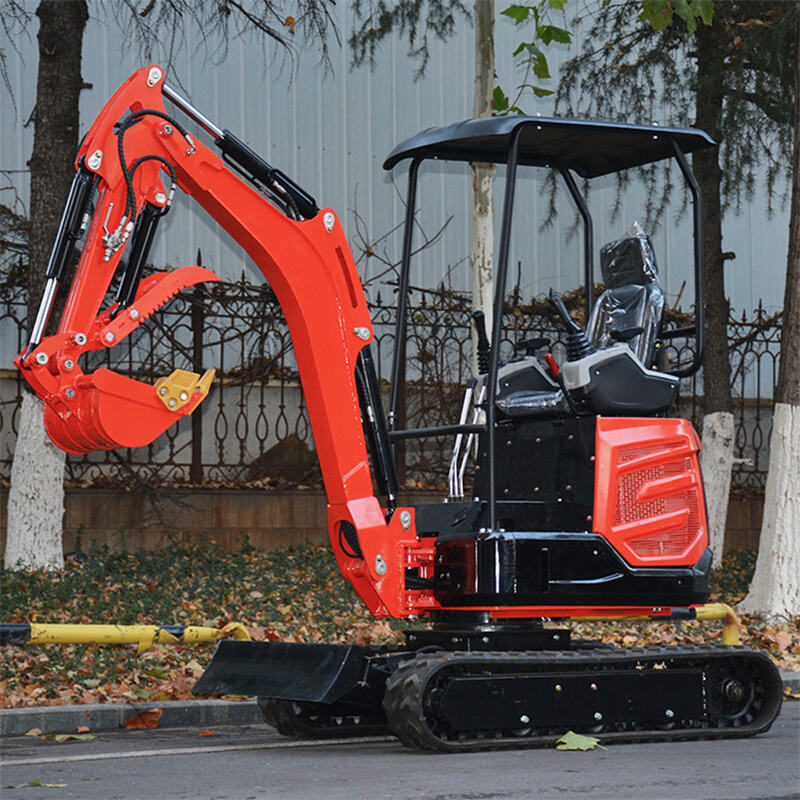

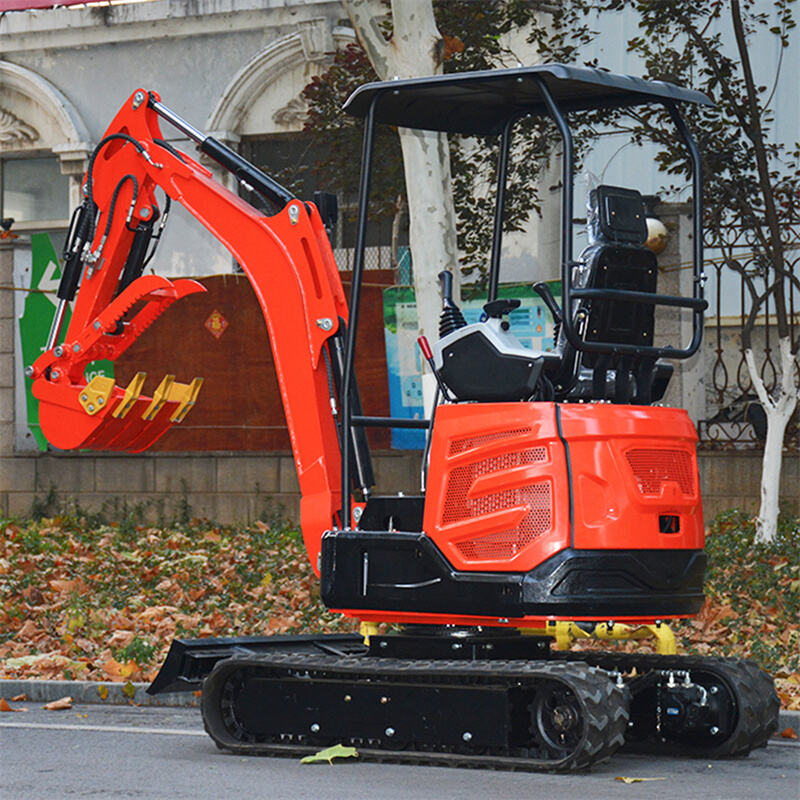

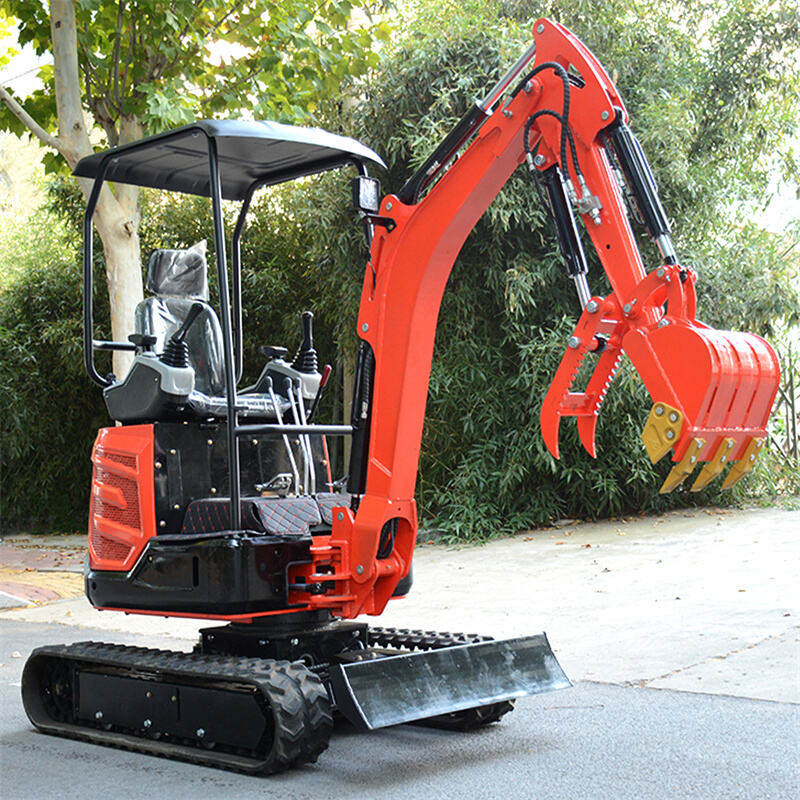

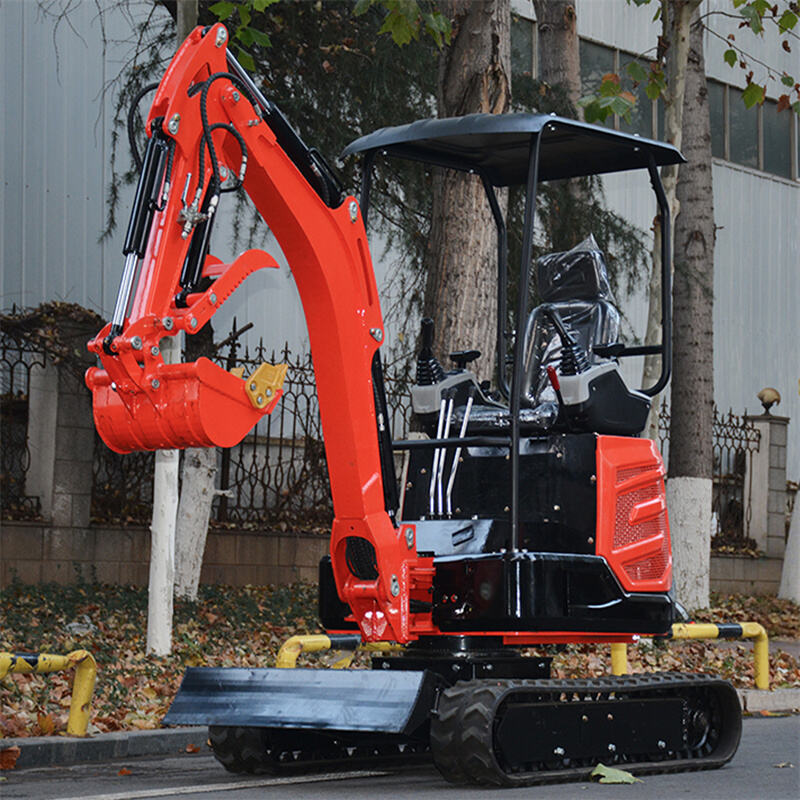

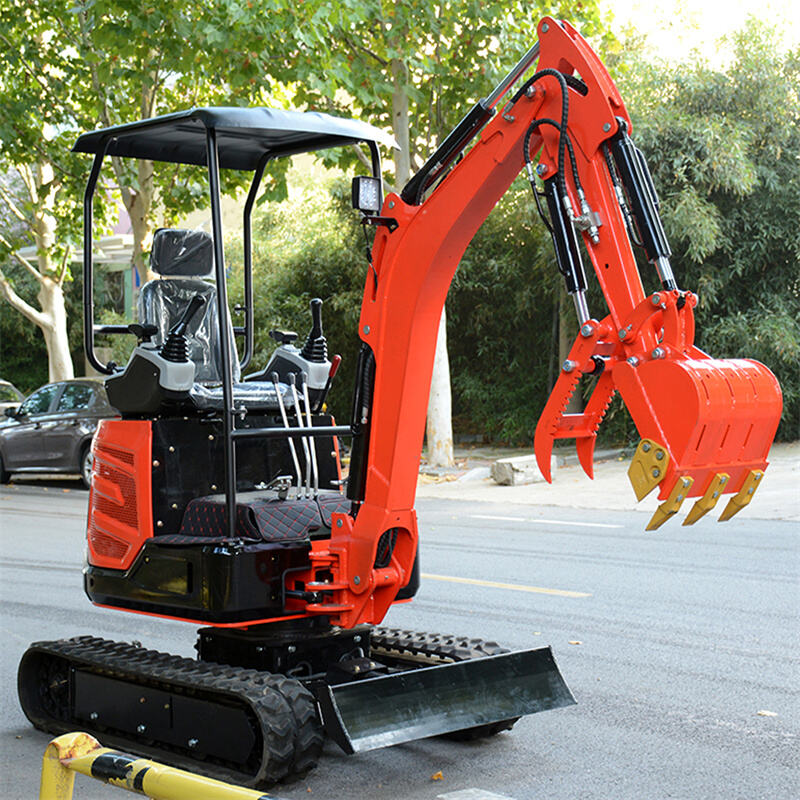

PRODUCT OVERVIEW: This machine is made of manganese steel,equipped with a standard 40cm bucket,four-leg canopy, 360-degree rotation,hydraulic oil shut-off valve,thickened dozer blade,wear-resistant engineering rubber tracks,high flexibility supporting compound actions,grease nipples for lubrication,with heat dissipation exhaust vents,plastic spraying process,
bidirectional guide wheels,locking tracks that are not easy to falloff.Compact and flexible for narrow operations;simple
operation and easy transport;renowned engine for smooth performance;360-degree rotation for convenience;comprehensive after-sales,low failure rate.
● High-quality thickened manganese steel with plastic spraying forrust and corrosion resistance;
● renowned engine brand for strong power;
● Hydraulic pilot operation for light and flexible control;
● Rear shell with back door for easy maintenance;operation boxwith instruments for real-time monitoring.
| CATEGORY | ITEM | SPECIFICATION/DESCRIPTION |
| BASIC PARAMETERS | Product Model | OMI-20 |
| Operating Weight | 2000kg | |
| Overall Dimensions (L×W×H) | 3300×1100×2250 mm | |

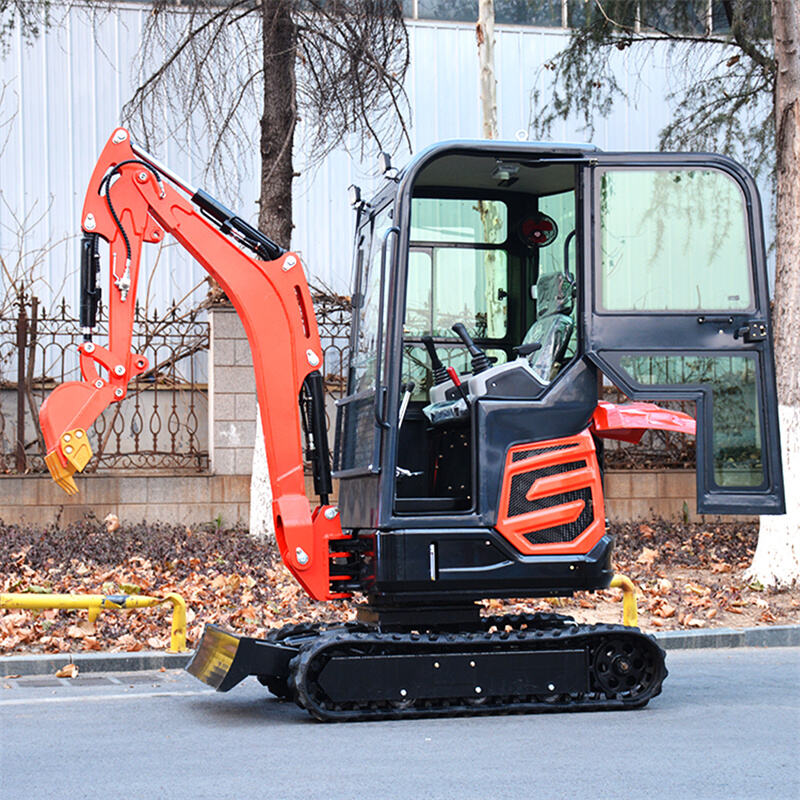

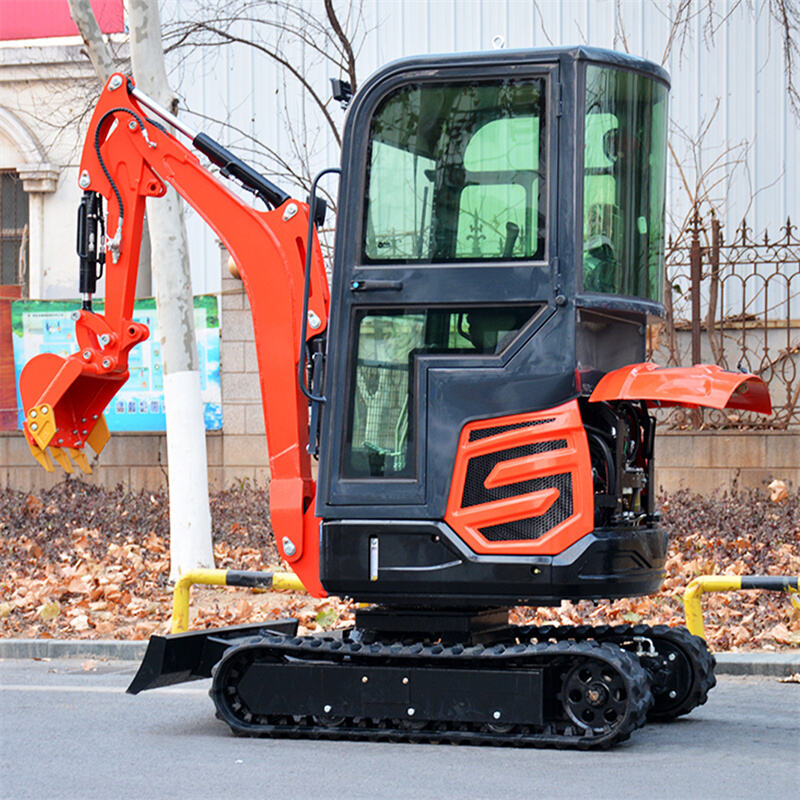

| Cab Type | Standard roof/optional cab | |
| Track Type(Rubber/Steel) | Standard rubber tracks /optional steel tracks | |
| Optional Attachments | Breaker/Rake/Quick hitch /Thumb clamp/Ripper/Grapple /Fork/Auger/Clamshell bucket /Hopper | |
| Compliance with certification | ISO/CE/GOST/ANSI/SA | |

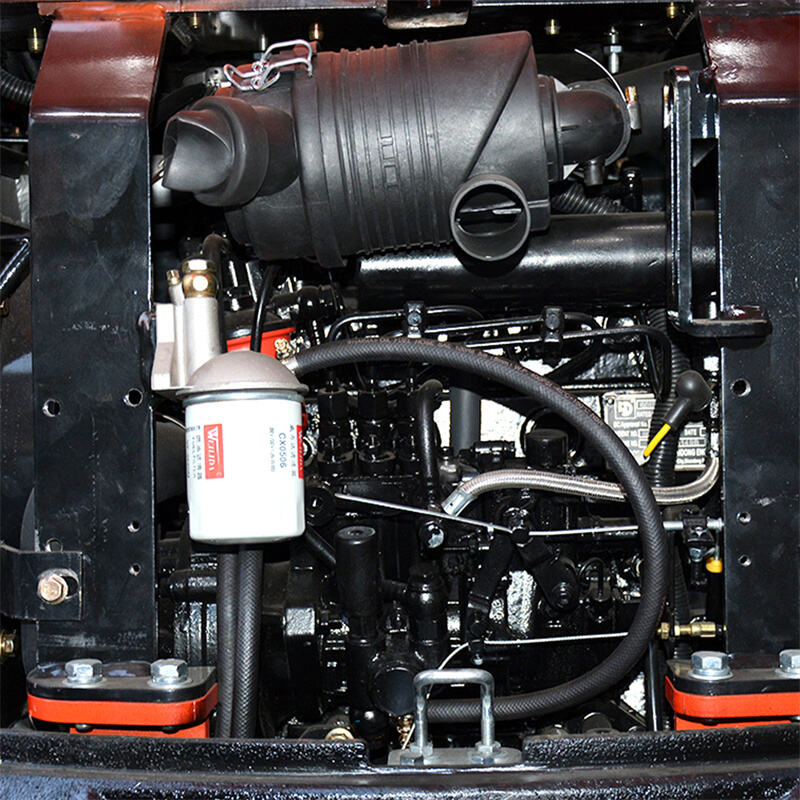

| ENGINE | Engine Brand&Model | Laidong 385 /Kubota/Yammer |
| Rated Power(HP/kW) | 39HP/16HP/16HP | |
| Optional Engine Models | Laidong 385 /Kubota /Yammer | |
| Emission Standard | EPA/Euro 5 | |
| HYDRAULIC SYSTEM | Hydraulic System Pressure | 22 MPa |
| Main Pump Type | Plunger pump/Pear pump | |
| Control Mode(Pilot/Mechanical) | Pilot | |
| Breaker Line (Yes/No) | Yes | |
| WORKING PARAMETERS | Boom Swing | Optional |

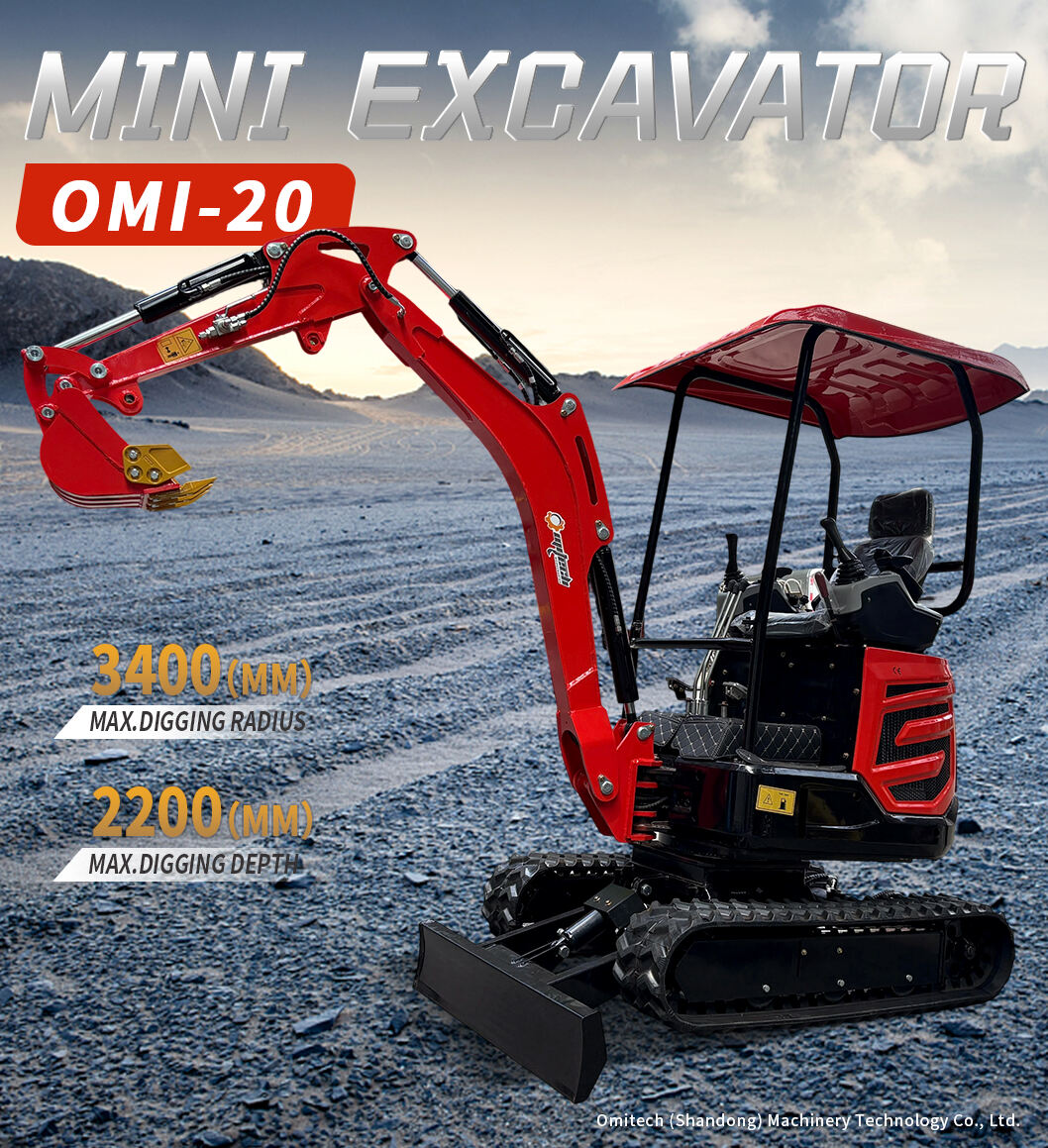

| Max.Digging Depth | 2200 mm | |
| Max.Digging Radius | 3400 mm | |
| Max.Digging Force | 17 KN | |
| Min.Operating Radius | 840 mm | |
| Bucket Capacity | 0.05m³ | |
| Bucket Width | 400 mm | |
| Max.Blade Lift Height | 325mm | |
| Max.Blade Lowering Depth | 350 mm | |
| Travel Speed | 2.2-4.3km/h | |
| Gradeability | 35° | |
| Track Width | 230 mm | |
| Track Gauge | 640mm |
