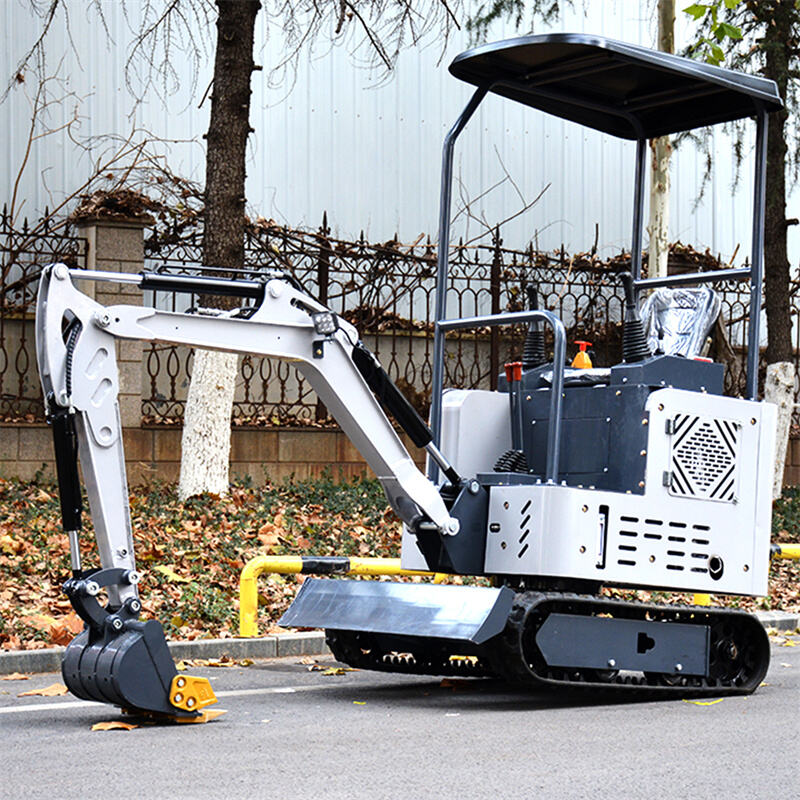

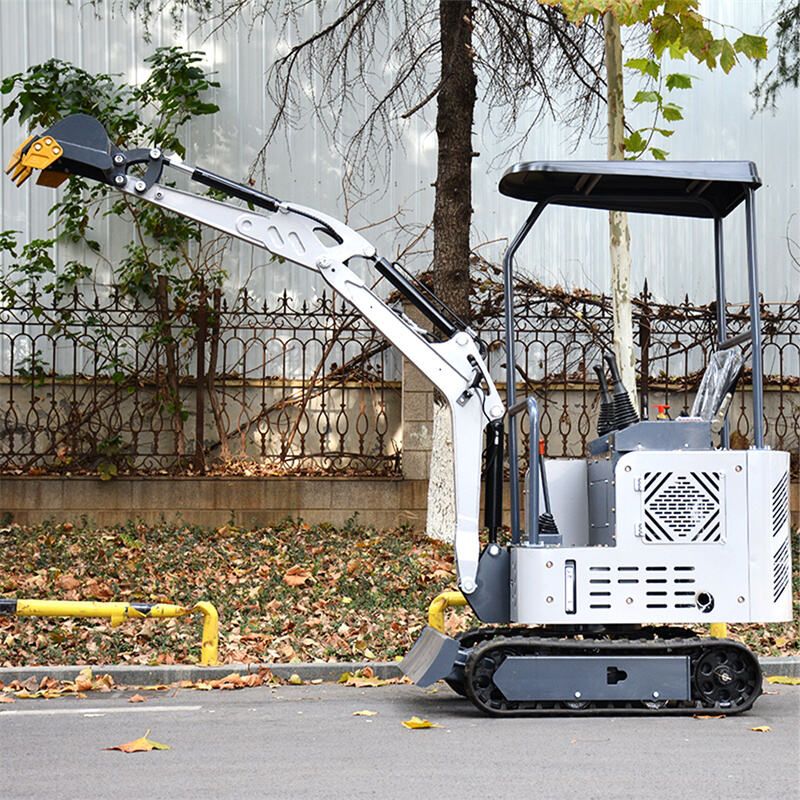

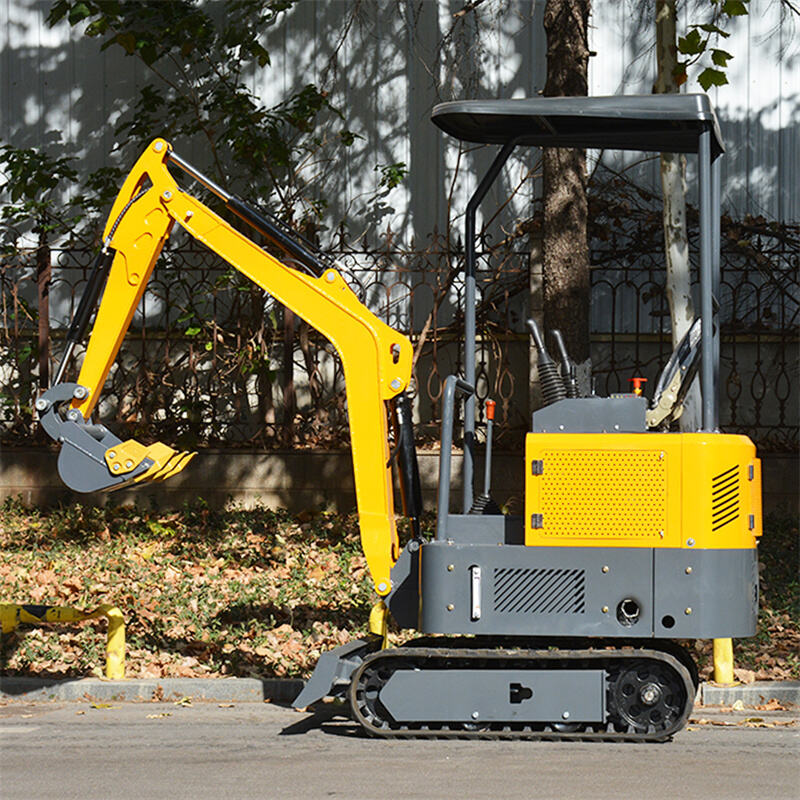

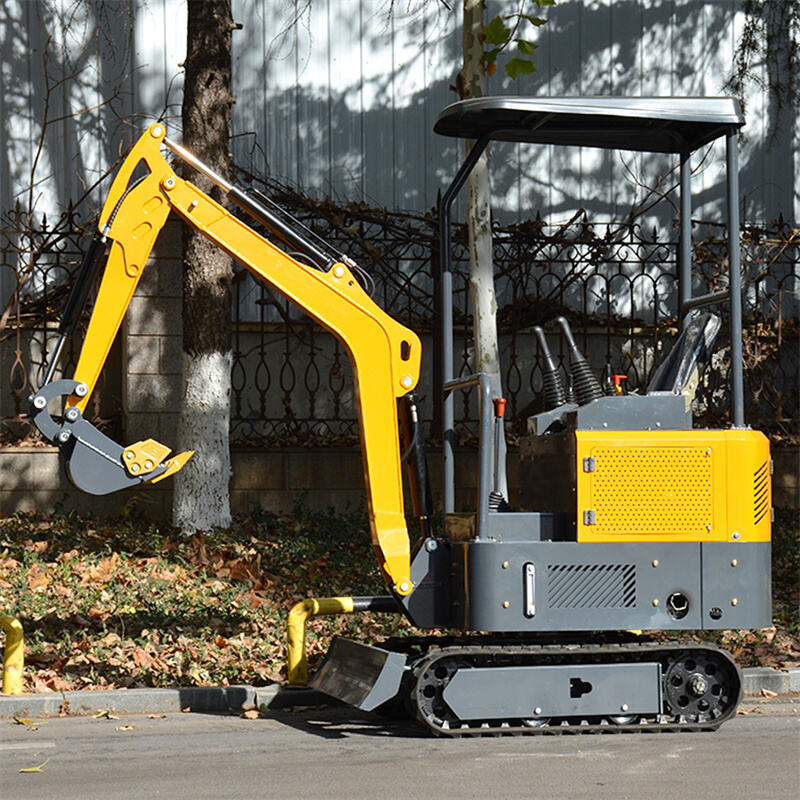

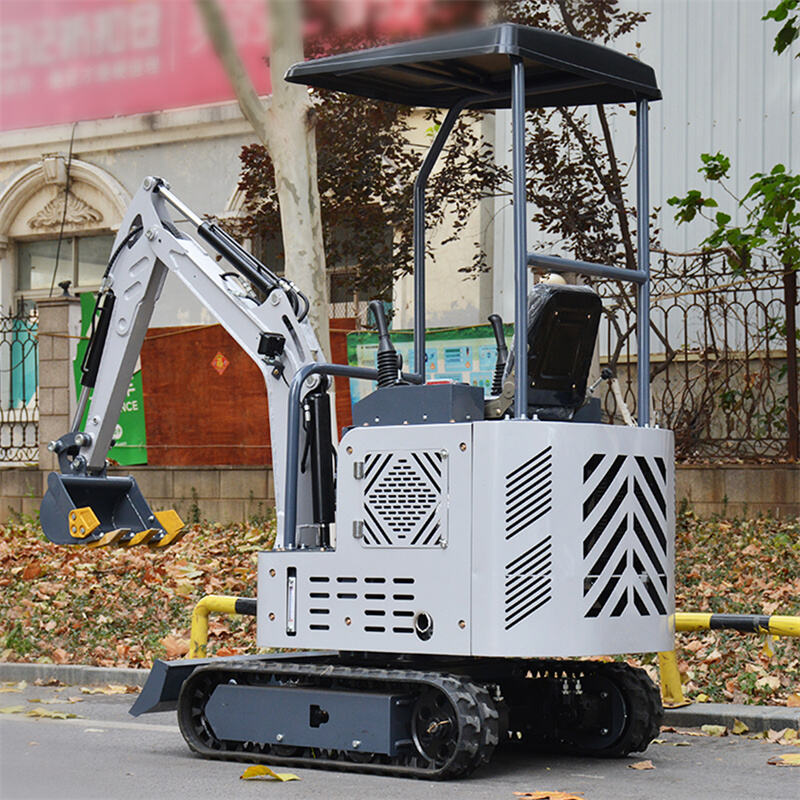

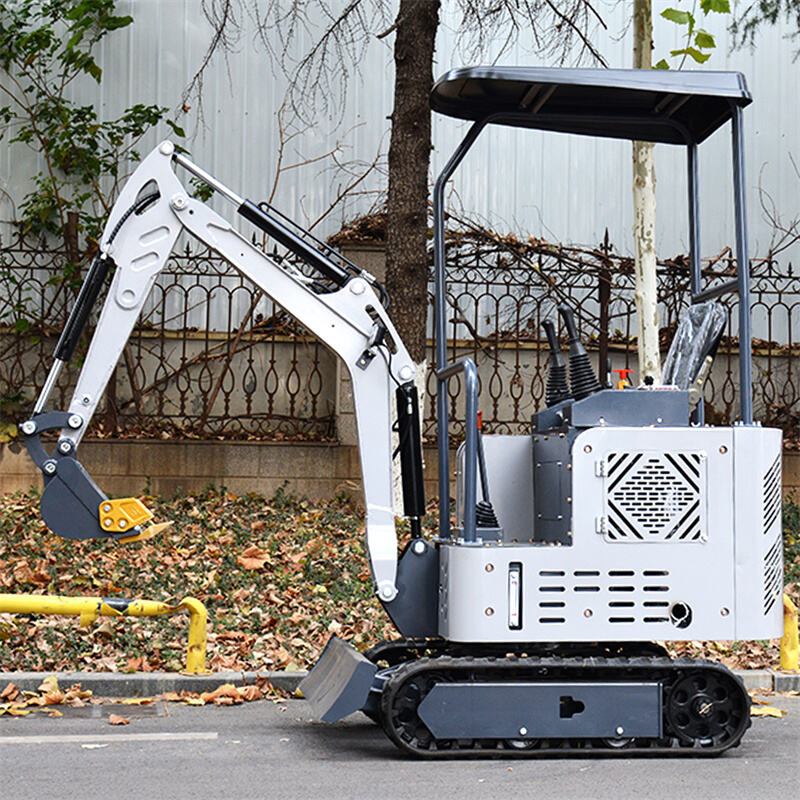

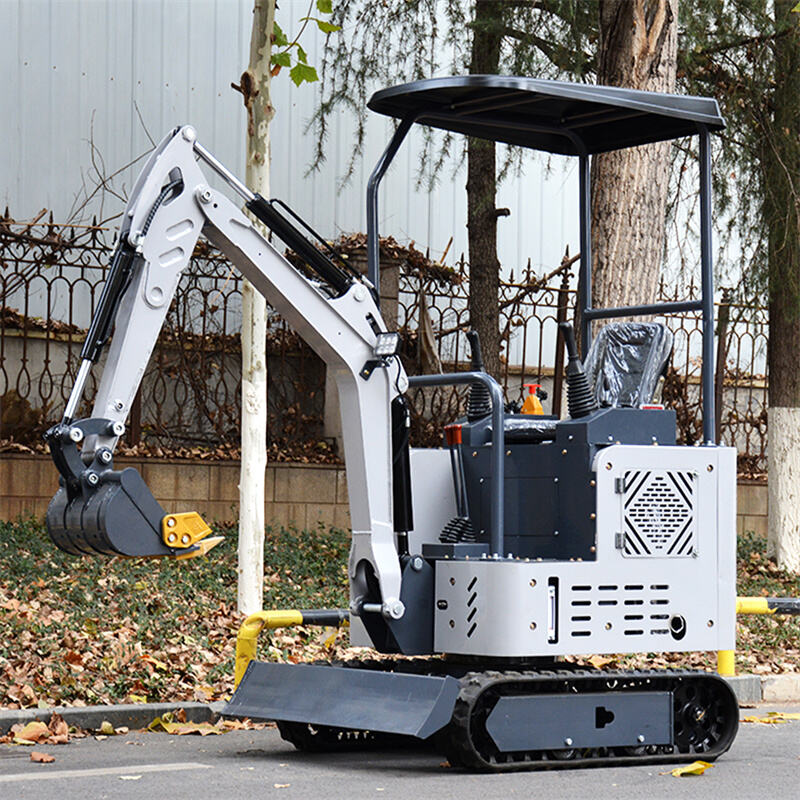

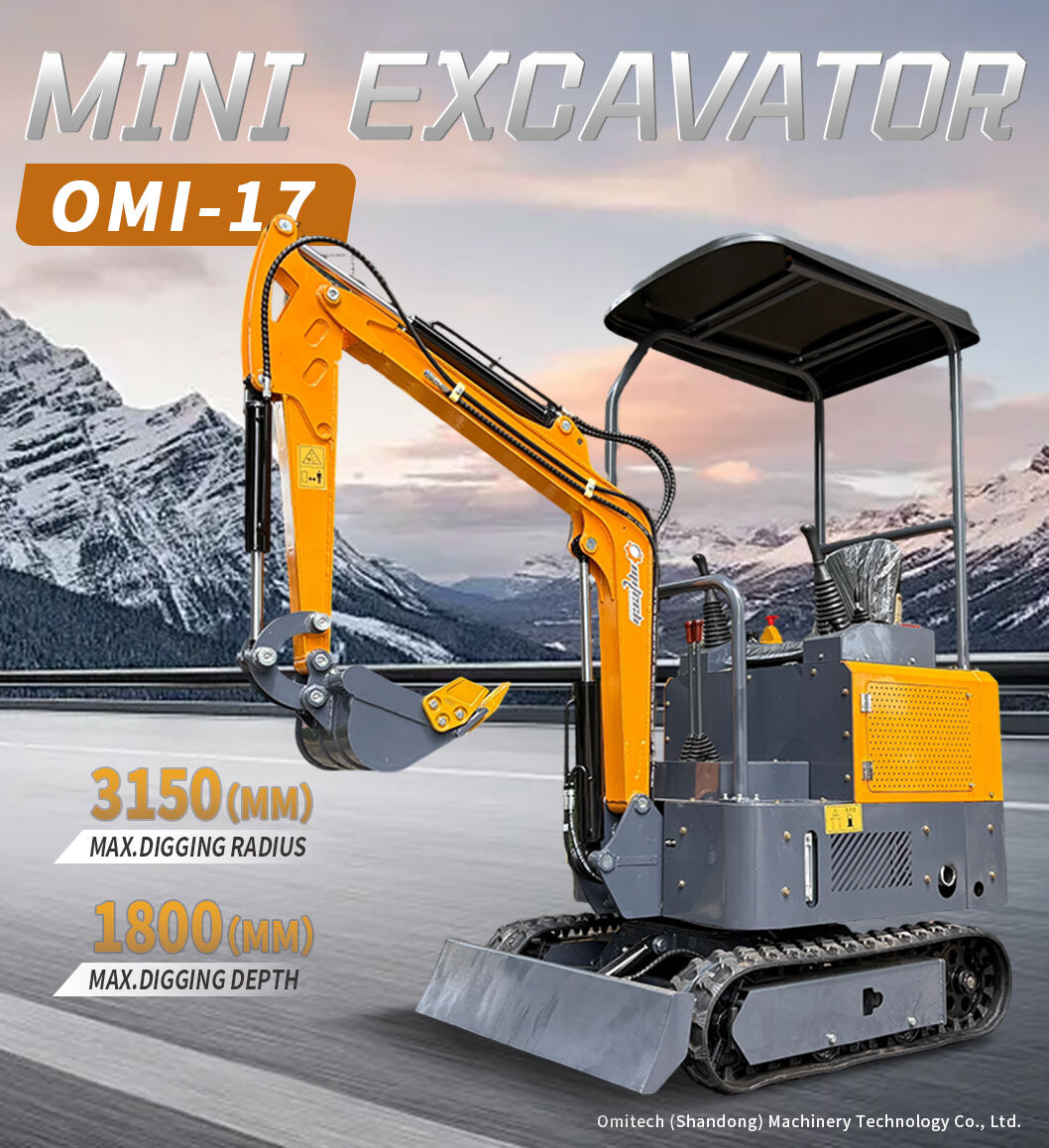

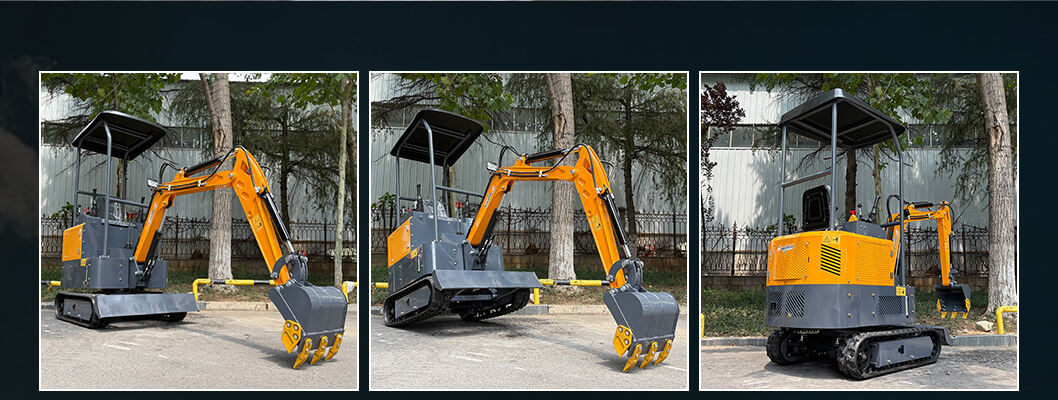

Diesel Powered 1.7 Ton Mini Excavator Agricultural Excavator Earth Moving Machinery with Hydraulic Thumb Clamp for Sale
PRODUCT OVERVIEW:This machine is made of manganese steel,equipped with a standard 40cm bucket,four-leg canopy,
360-degree rotation,hydraulic oil shut-off valve,thickened dozer blade,wear-resistant engineering rubber tracks,high flexibility supporting compound actions,grease nipples for lubrication,mechanical operation,hydraulic oil display port,integrated
stamping design,plastic spraying process,bidirectional guide wheels,locking tracks that are not easy tofalloff,thickened
cylinders.Simple operation and easy transport;renowned engine for smooth performance;360-degree rotation for convenience; comprehensive after-sales,low failure rate.
● High-quality thickened manganese steel with plastic spraying forrust and corrosion resistance;
● renowned engine brand for strong power.
| CATEGORY | ITEM | SPECIFICATION/DESCRIPTION |
| BASIC PARAMETERS | Product Model | OMI-17 |
| Operating Weight | 1700kg | |
| Overall Dimensions (L×W×H) | 2800×1100×2250 mm | |
| Cab Type | Standard roof/optional cab | |
| Track Type(Rubber/Steel) | Standard rubber tracks /optional steel tracks | |

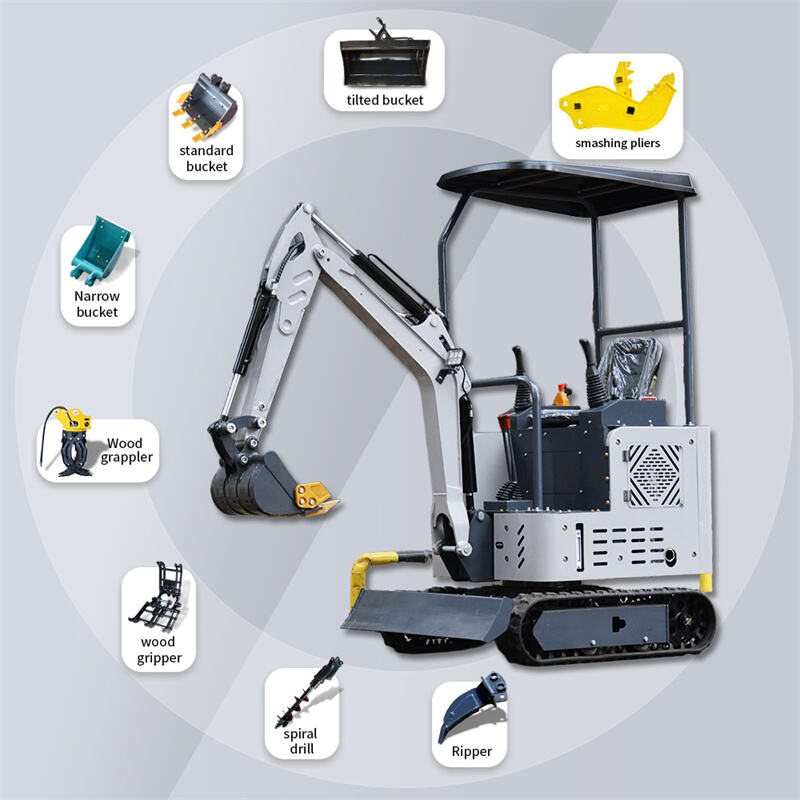

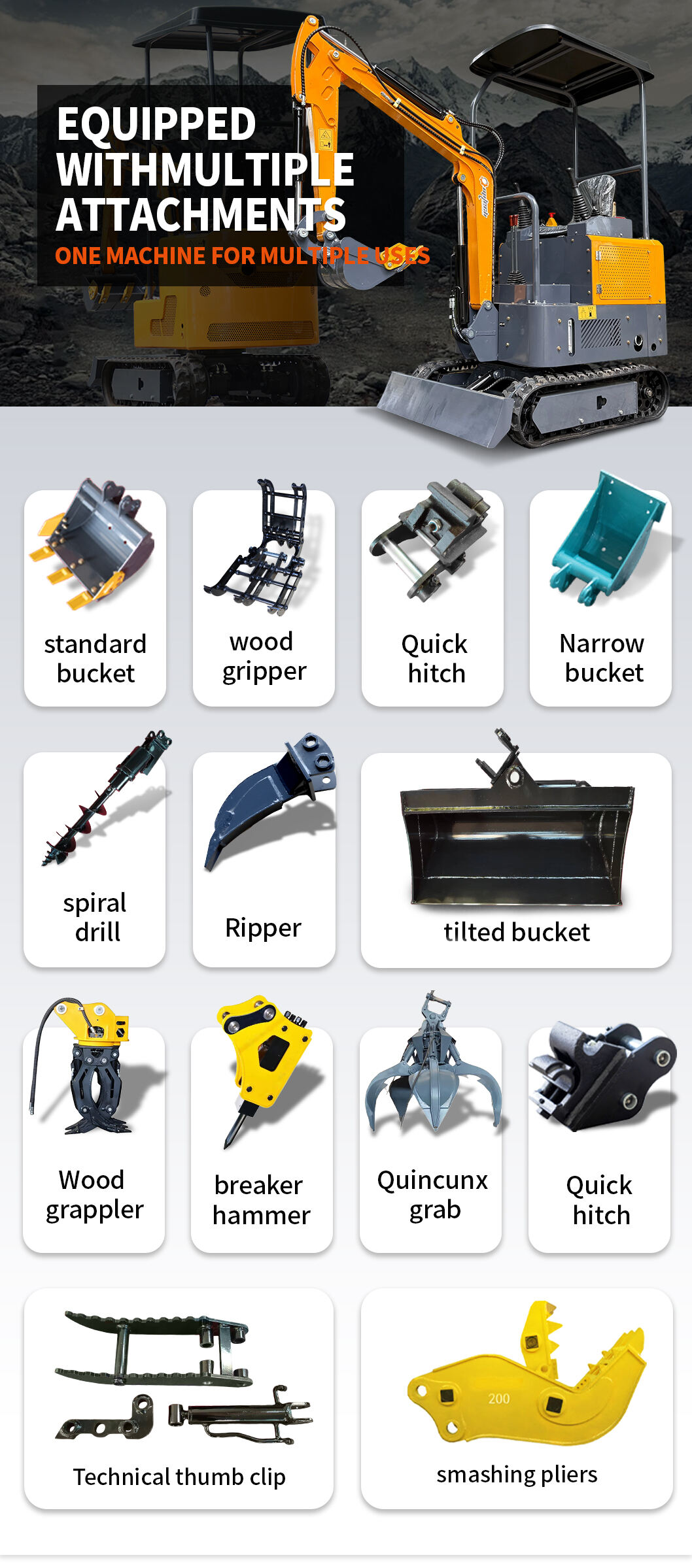

| Optional Attachments | Breaker/Rake/Quick hitch /Thumb clamp/Ripper/Grapple /Fork/Auger/Clamshell bucket /Hopper | |
| Compliance with certification | ISO/CE/GOST/ANSI/SA | |

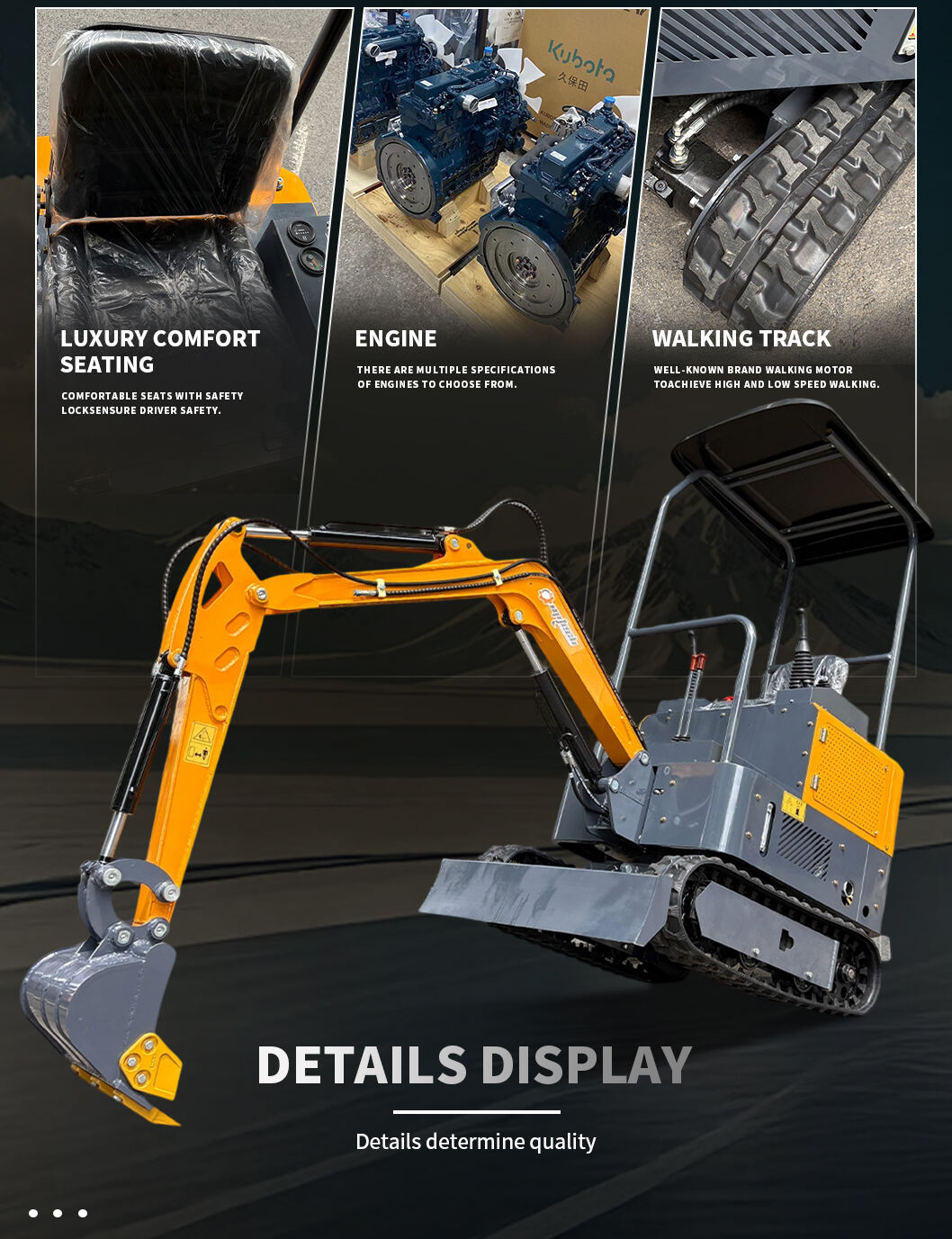

| ENGINE | Engine Brand&Model | Laidong 385 /Kubota/Yammer |
| Rated Power(HP/kW) | 39HP/16HP/16HP | |
| Optional Engine Models | Laidong 385 /Kubota /Yammer | |
| Emission Standard | EPA/Euro 5 | |
| HYDRAULIC SYSTEM | Hydraulic System Pressure | 20 MPa |
| Main Pump Type | Double pump | |
| Control Mode(Pilot/Mechanical) | Pilot/Mechanical | |
| Breaker Line (Yes/No) | Yes | |
| WORKING PARAMETERS | Boom Swing | Optional |
| Max.Digging Depth | 1800 mm | |
| Max.Digging Radius | 3150 mm | |
| Max.Digging Force | 15KN | |
| Min.Operating Radius | 900 mm | |
| Bucket Capacity | 0.04m³ | |
| Bucket Width | 400 mm | |
| Max.Blade Lift Height | 160 mm | |
| Max.Blade Lowering Depth | 210 mm | |
| Travel Speed | 2.2-4.3km/h | |
| Gradeability | 35° | |
| Track Width | 180 mm | |
| Track Gauge | 740 mm |
