| Dimensions (mm)
|
| Overall length |
3200 |
| Ground length (transportation) |
1180 |
| Overall height (to top of boom) |
1100 |
| Overall width |
940 |
| Overall height (to top of cab) |
2200 |
| Counterweight ground clearance |
355 |
| Minimum ground clearance |
150 |
| Tail swing radius |
810 |
| Wheelbase |
900 |
| Standard track shoe width |
180 |
| Bucket width |
400 |

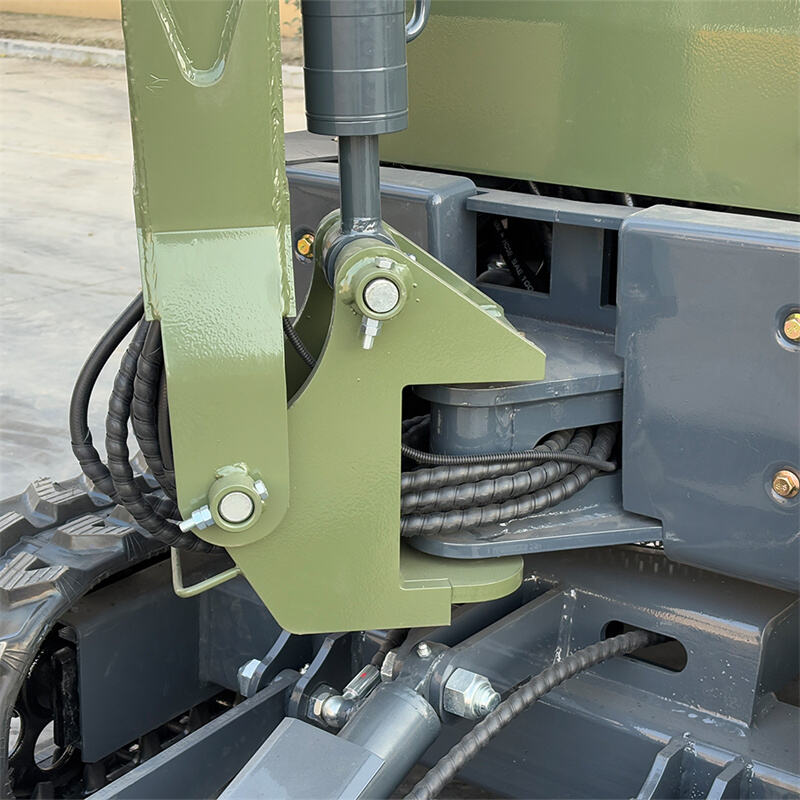

| RS Boom right swing |
49.7° |
| LS Boom left swing |
62.7° |
| Working range (mm)
|
| ① Max. digging height |
3000 |
| ② Max. dumping height |
1840 |
| ③ Max. digging depth |
1750 |
| ④ Max. digging distance |
3250 |
| ⑤ Min. swing radius of working device |
1390 |
| ⑥ Max. lifting height of bulldozer |
100 |
| ⑦ Max. cutting depth of bulldozer |
170 |
